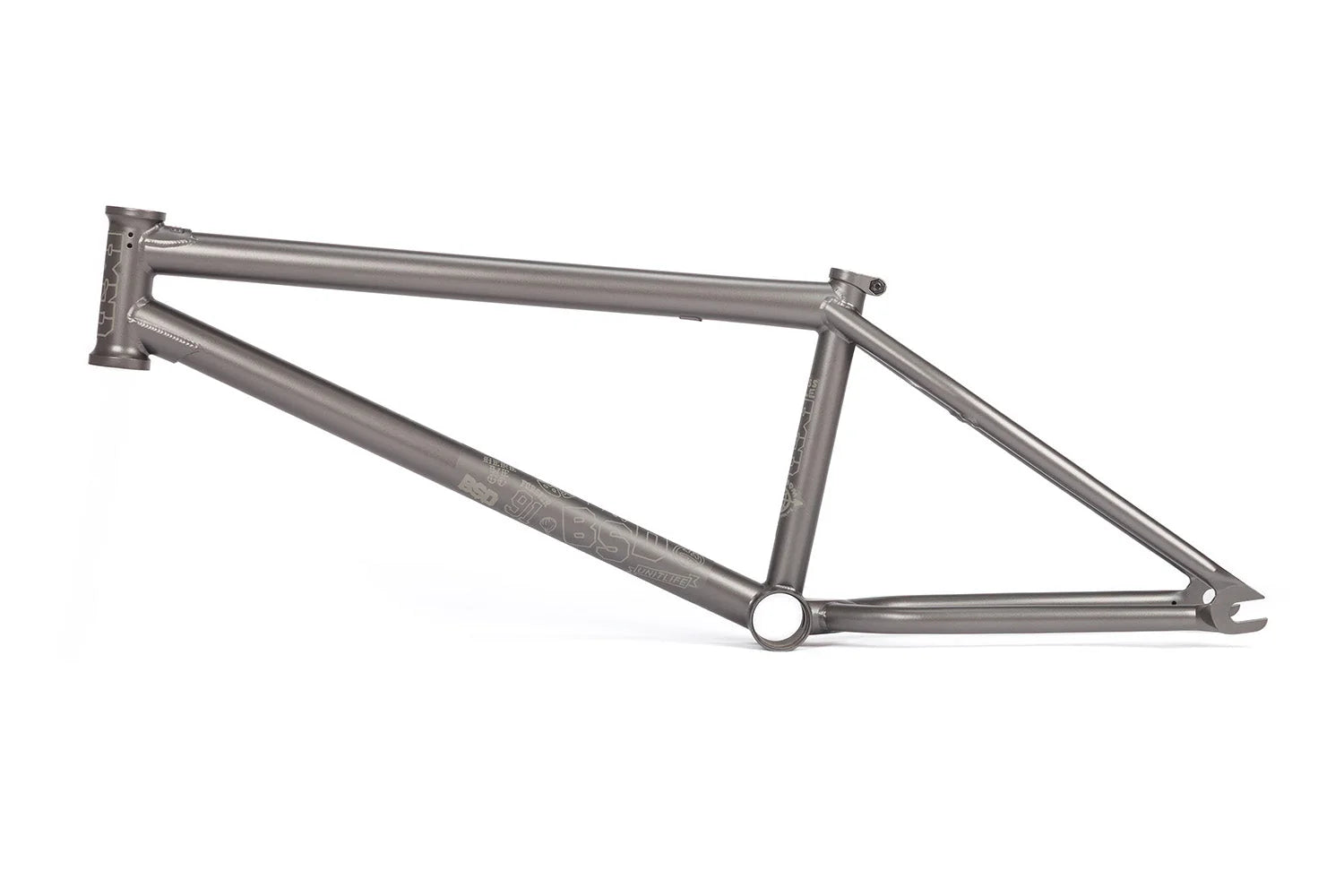

BSD Freedom BMX Frame (Kriss Kyle Signature)

BSD Freedom BMX Frame (Kriss Kyle Signature)

Words from BSD:

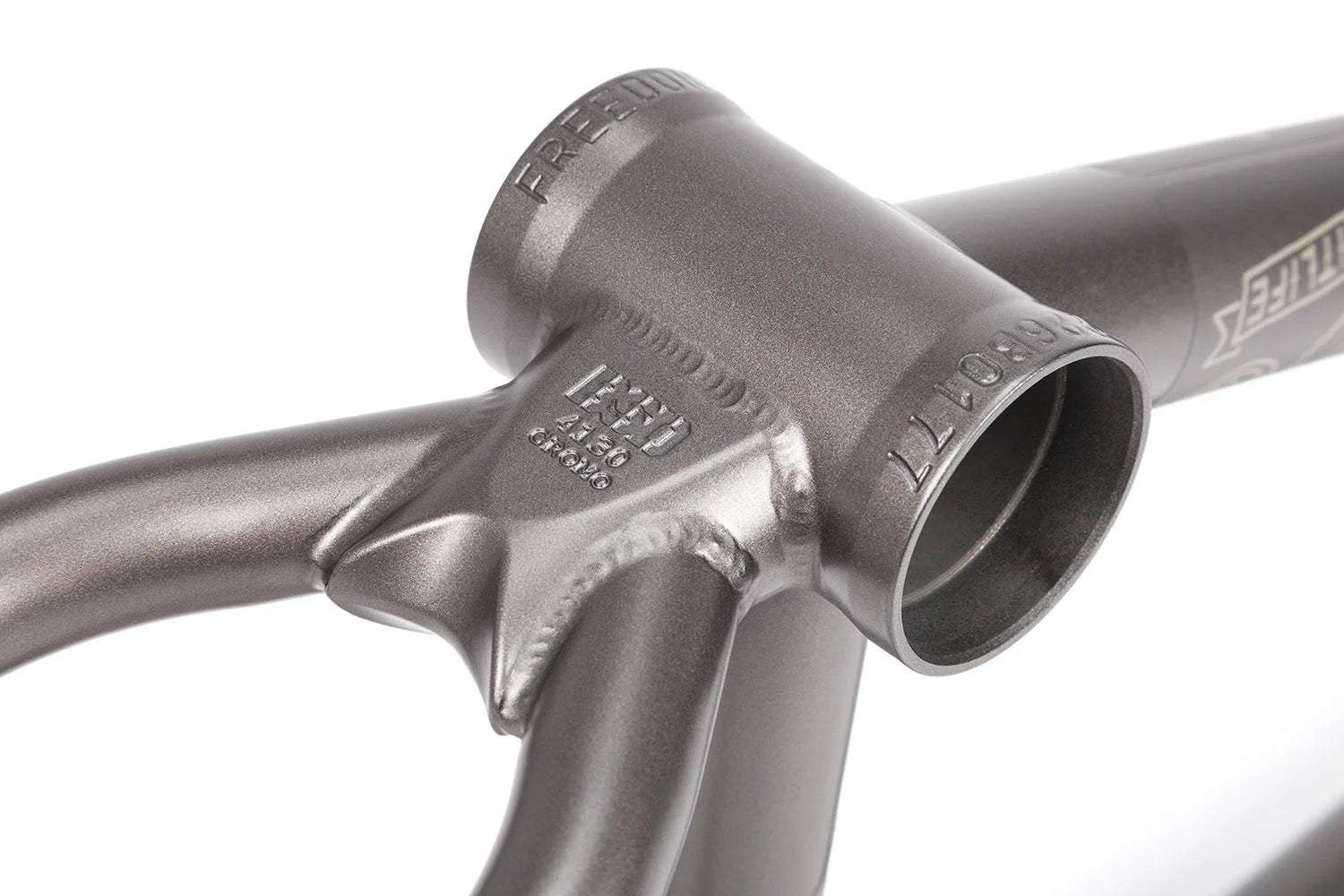

"Kriss Kyle is the type of rider who likes to ride it all—bowls, street, dirt, you name it. His signature Freedom frame is built to perform on any terrain. It combines the stability of a low 11.5" BB, the responsiveness of a 75° head angle, and the versatility of a short rear end. To enhance rear triangle stiffness, we’ve incorporated an invest-cast wishbone and invest-cast seatstay bridge—perfect for those sideways landings!".

SPECS

• Toptube lengths: 20.2 / 20.5 / 20.8 / 21.1 / 21.5
• Headtube angle: 75°
• Headtube length: 117mm
• Seattube angle: 69.5°
• Rear end length: 13.2″ – 13.625″ - note the 21.5″ frame has a longer rear (13.4″ – 13.825″)
• BB Height: 11.5"
• Standover: height 9"
• Weight: 5lbs
• Brake mounts removable (brake kit available separately)
• Tubing: Sanko Japanese seamless 4130 CrMo / triple butted

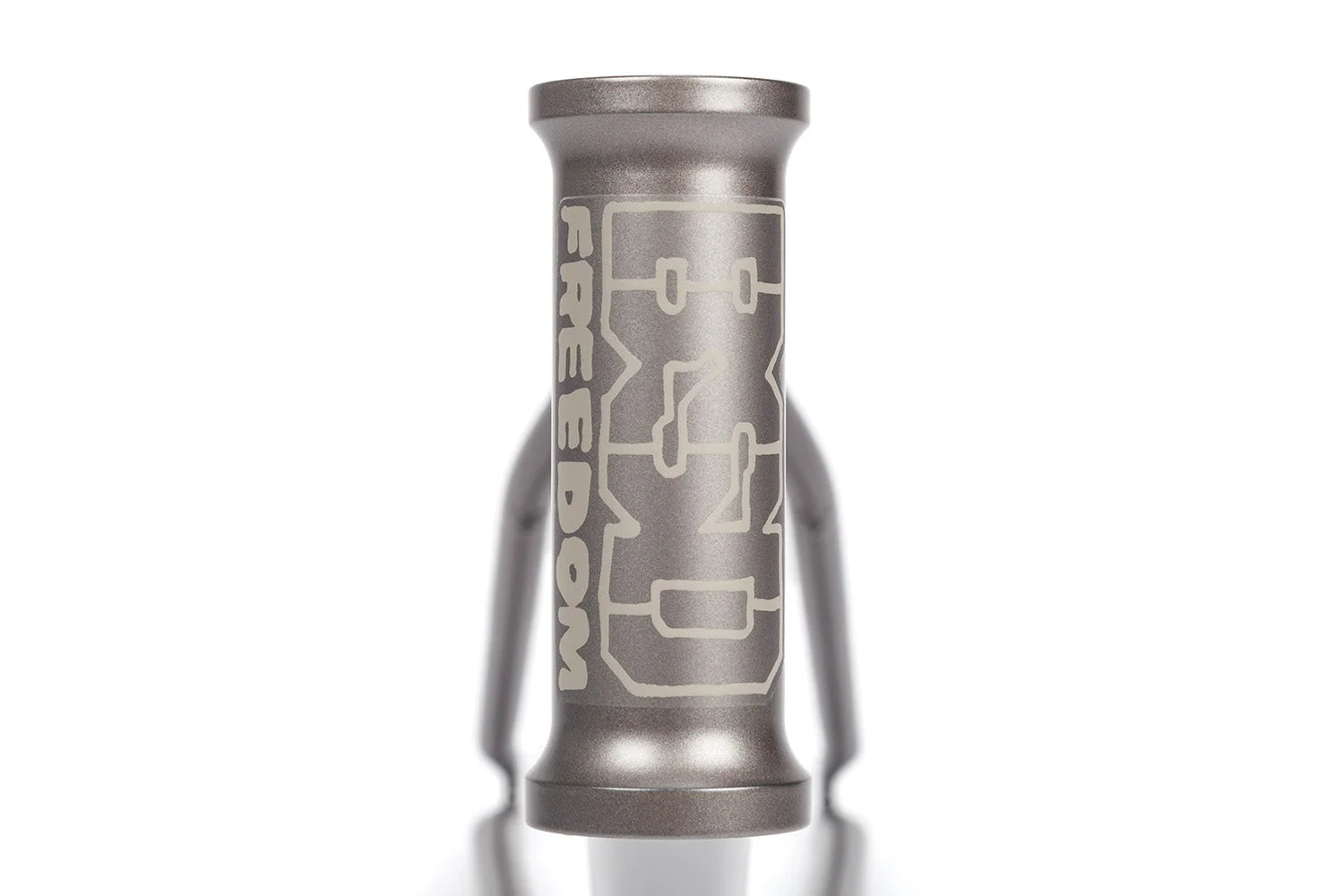

• Headtube: Heat treated 4130 CrMo / CNC / Offset thickness
• Bottom: Bracket Heat treated 4130 CrMo / CNC machined

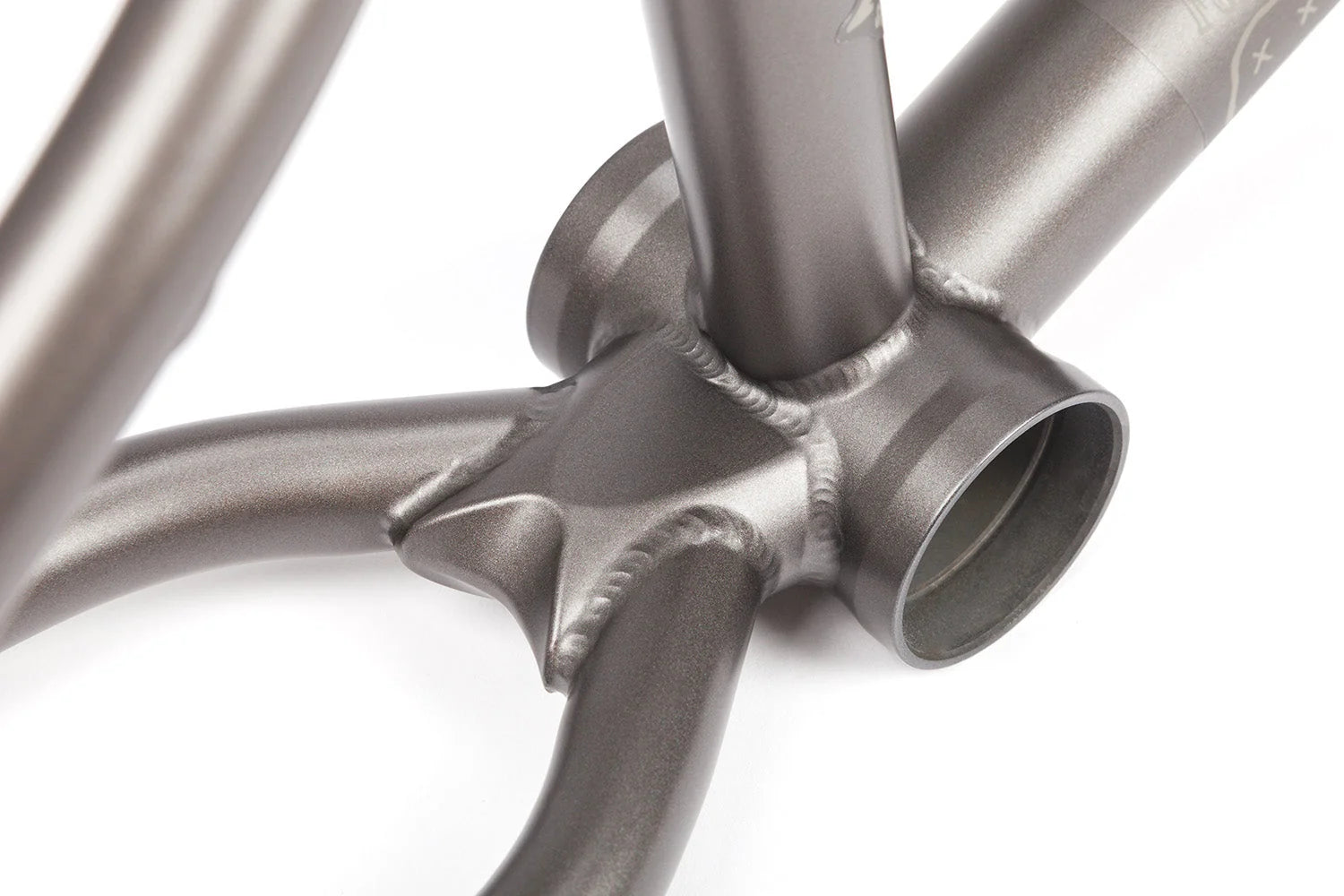

• Chainstay: Wishbone Heat treated 4130 CrMo / Invest cast
• Dropouts: Heat treated 4130 CrMo / Invest cast

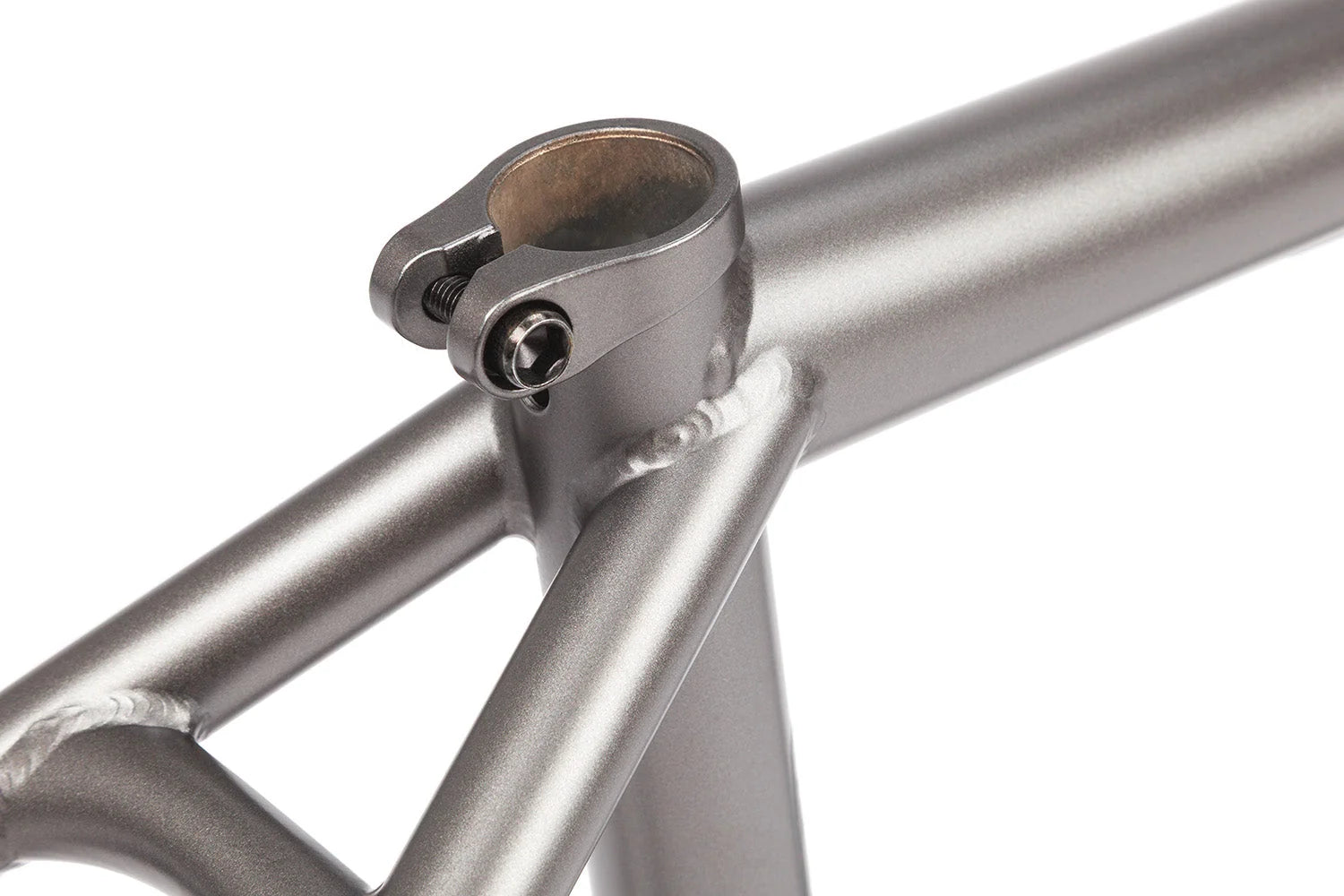

• Seatclamp: Heat treated 4130 CrMo / Invest cast

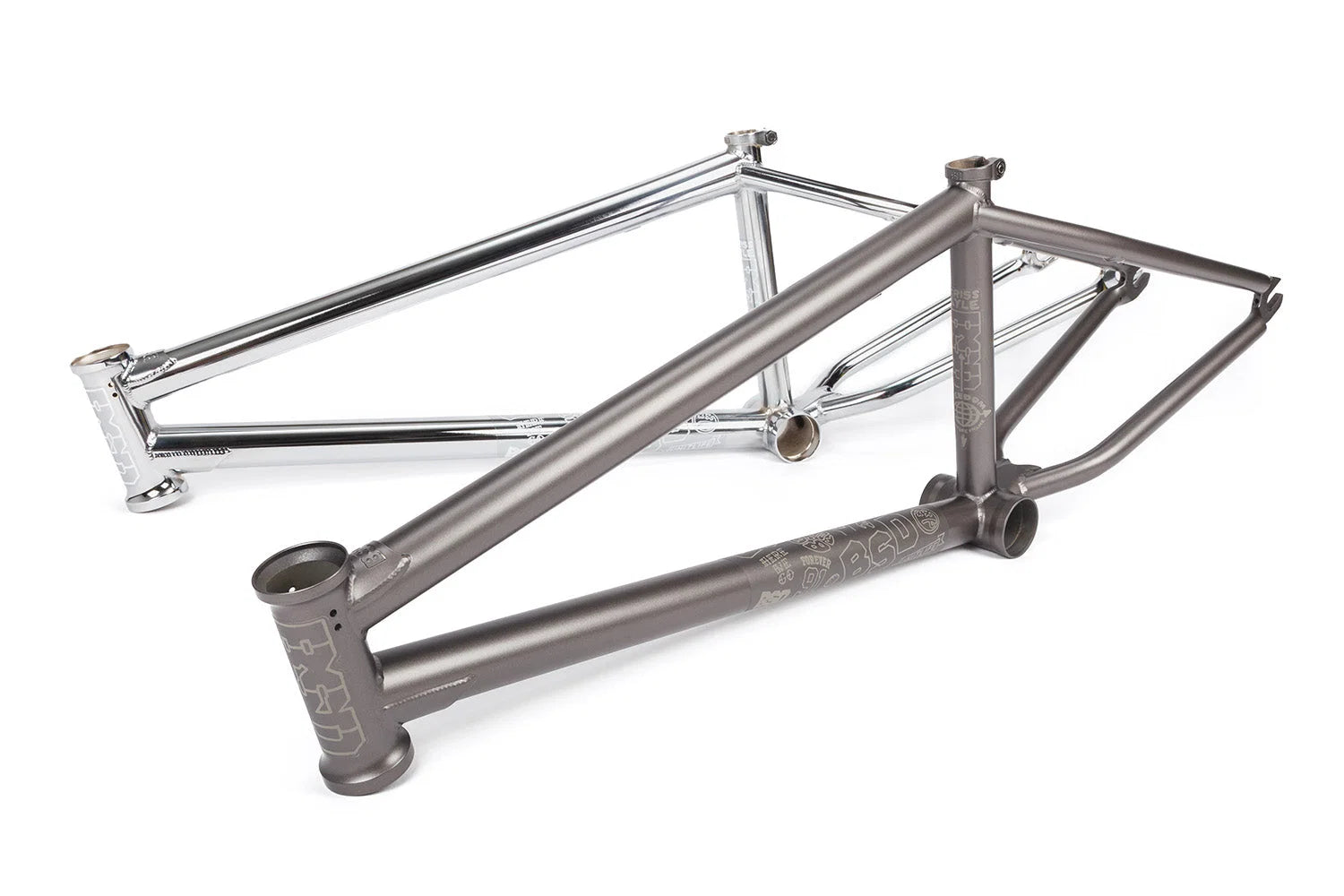

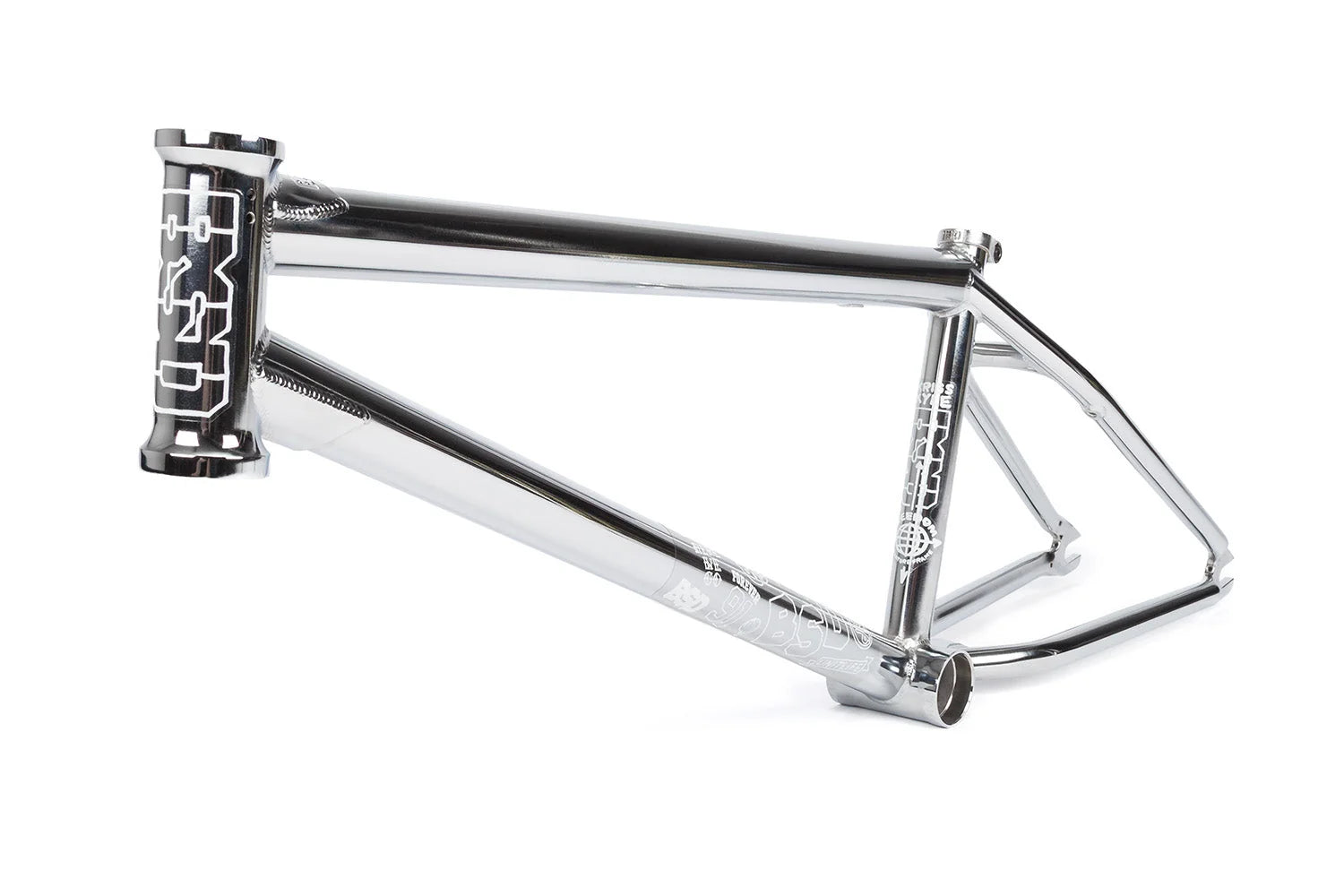

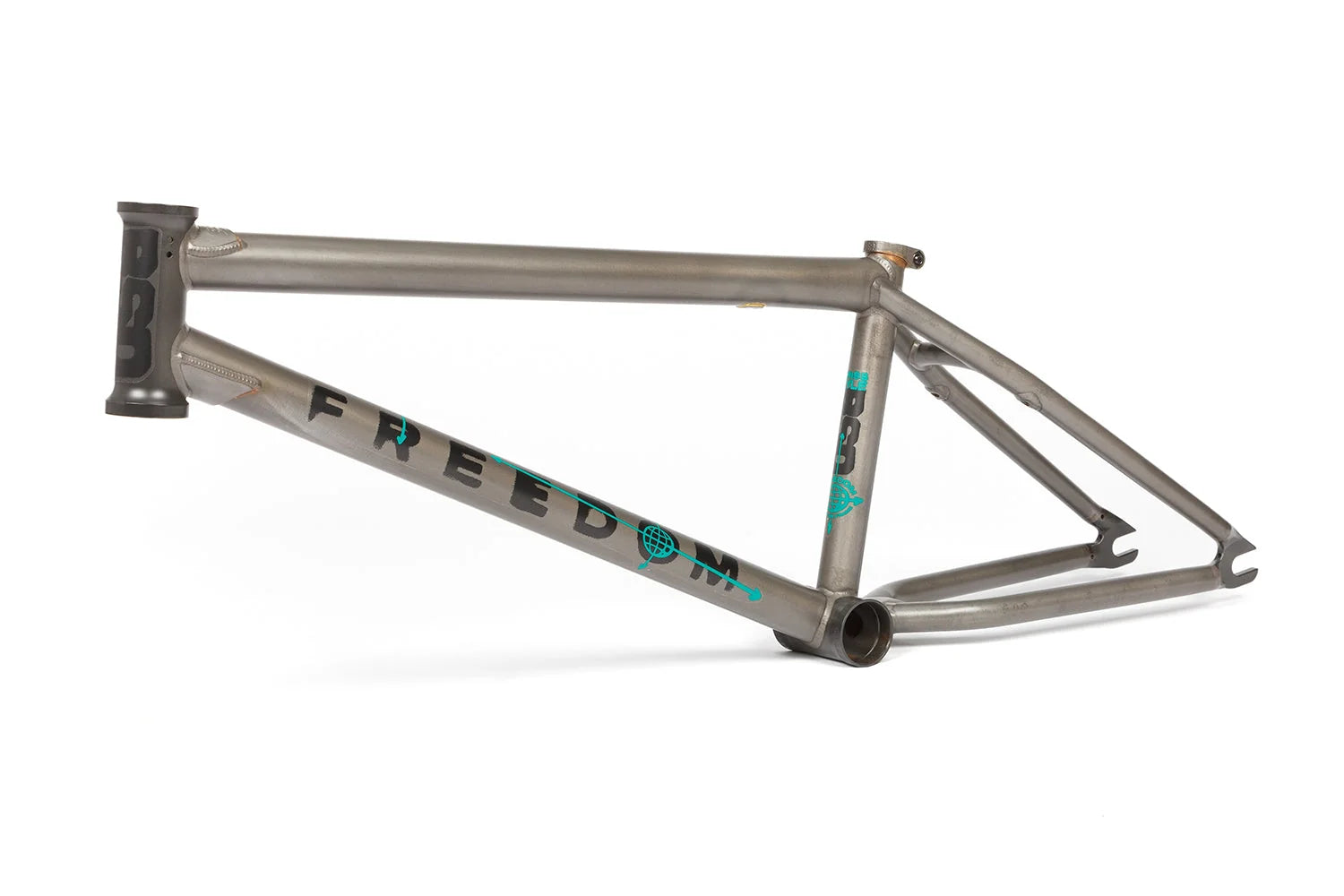

• Colors:  CHROME / METALLIC GRAPHITE / FLAT RAW
