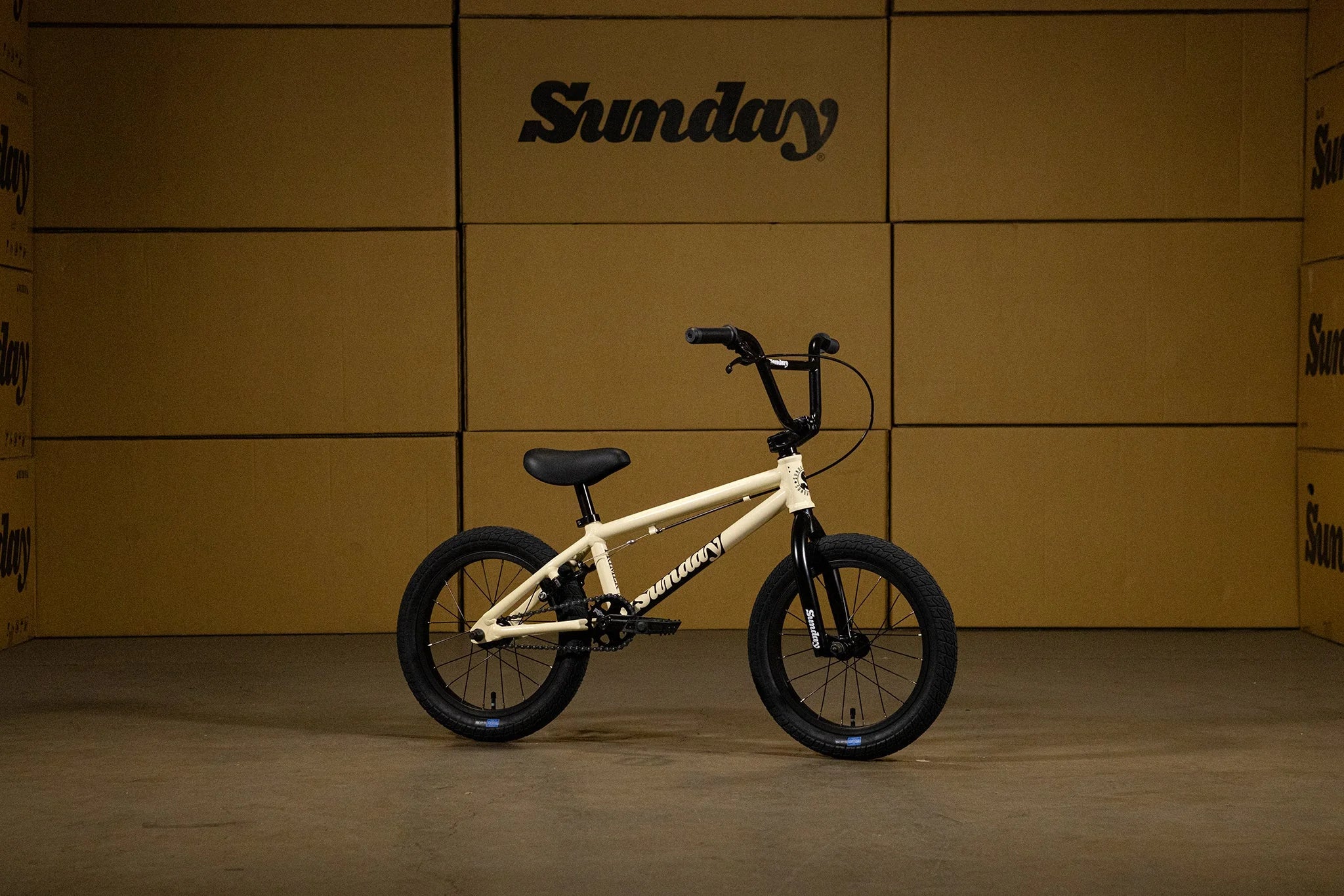

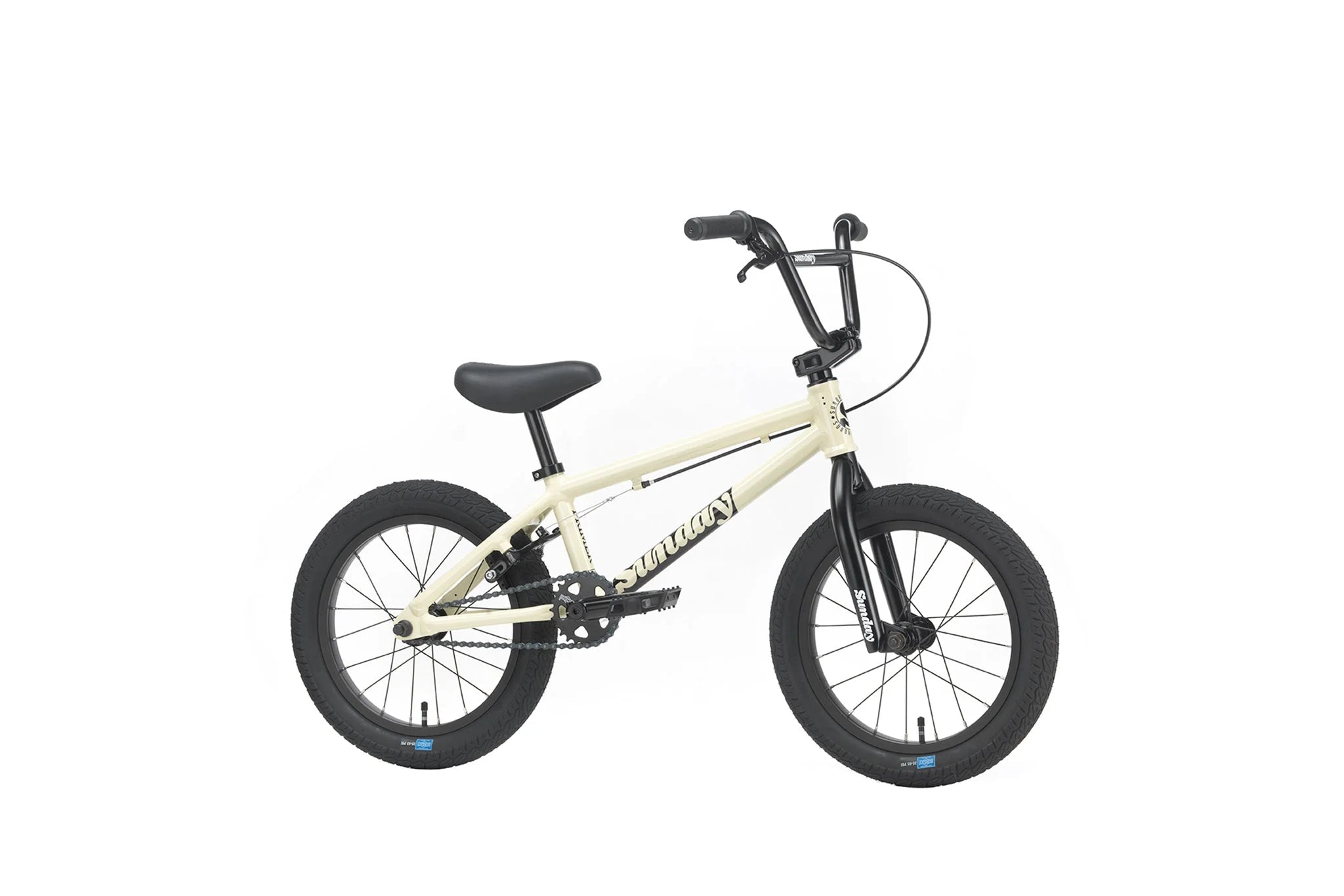

Sunday Primer 16" BMX Bike (Aluminum / Gloss Classic White)

Sunday Primer 16" BMX Bike (Aluminum / Gloss Classic White)

Words from Sunday:

"We're excited to introduce an updated Primer line of bikes for all the young riders out there. Our Primer 16" & 18" bikes are now built around a newly-designed lightweight aluminum frame; all while retaining a classic look and durability. The aluminum frame upgrade will be an added advantage to young riders who are just starting out, and the new seat/post combo provides a comfortable level riding position.

Using Sunday's proven geometry, the Primer rides like a pro-level bike that has been scaled down to meet the needs of smaller riders. These bikes are packed with quality parts like Odyssey Springfield Brakes, cables and a fully sealed cassette hub for reliability that you can count on every time. 18” models feature Odyssey Path Pro tires.".

Key Features

• ALL NEW ALUMINUM FRAME

• 16" Pro-Style Geometry

• 40mm Top Load Stem

• FSA Headset

• KMC S1 Chain

• Sunday Badge Seat and Post Combo (new more level position)

• Odyssey Springfield Brakes

• Sealed 10t Cassette Hub

• Sunday Current v1 16" Tires


Specifications

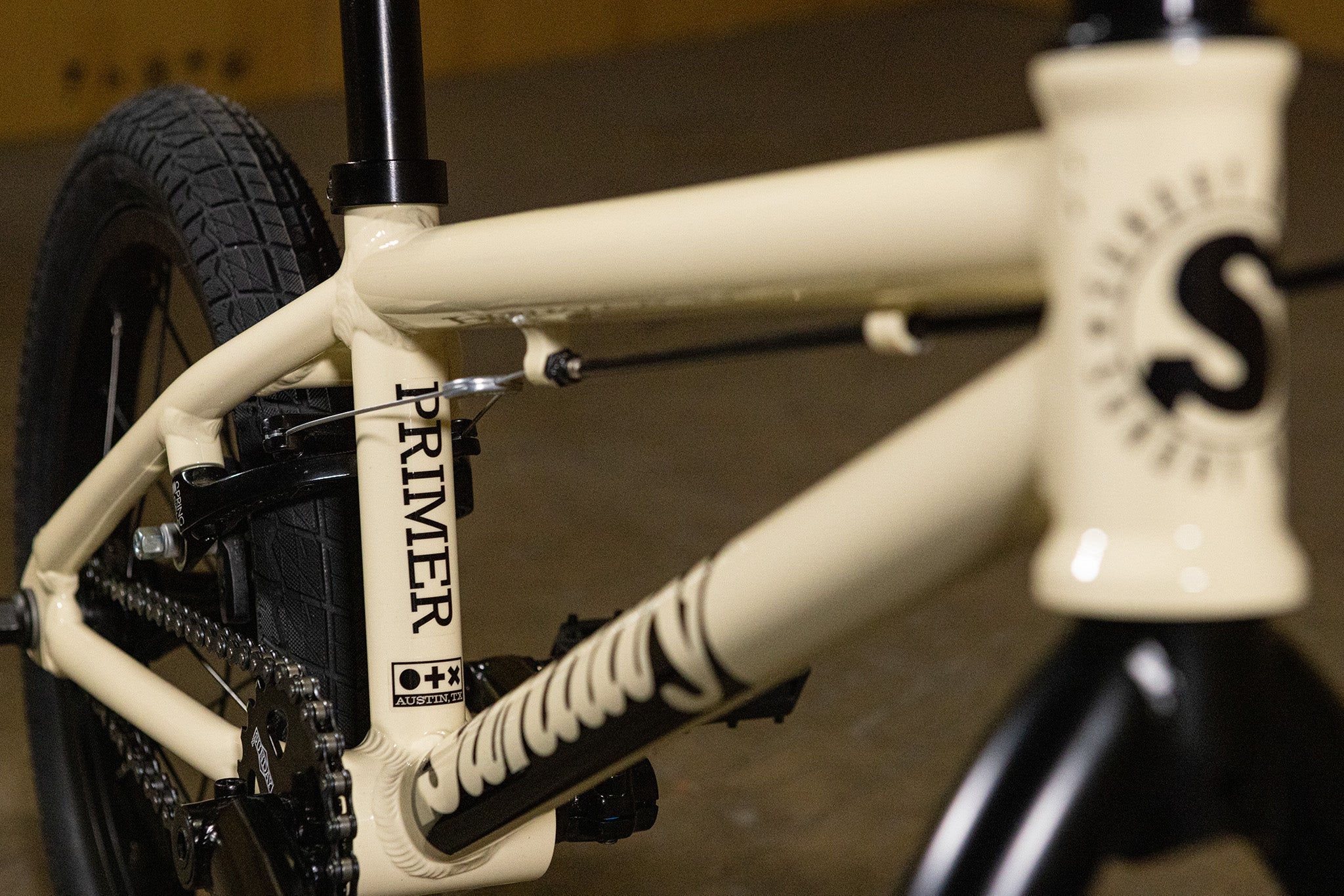

• Frame: Sunday Primer Aluminum, 16.5" top tube, integrated 1-1/8" head tube

• Fork: Sunday Primer, 16" fork w/ 2-piece steerer tube and welded pre-load

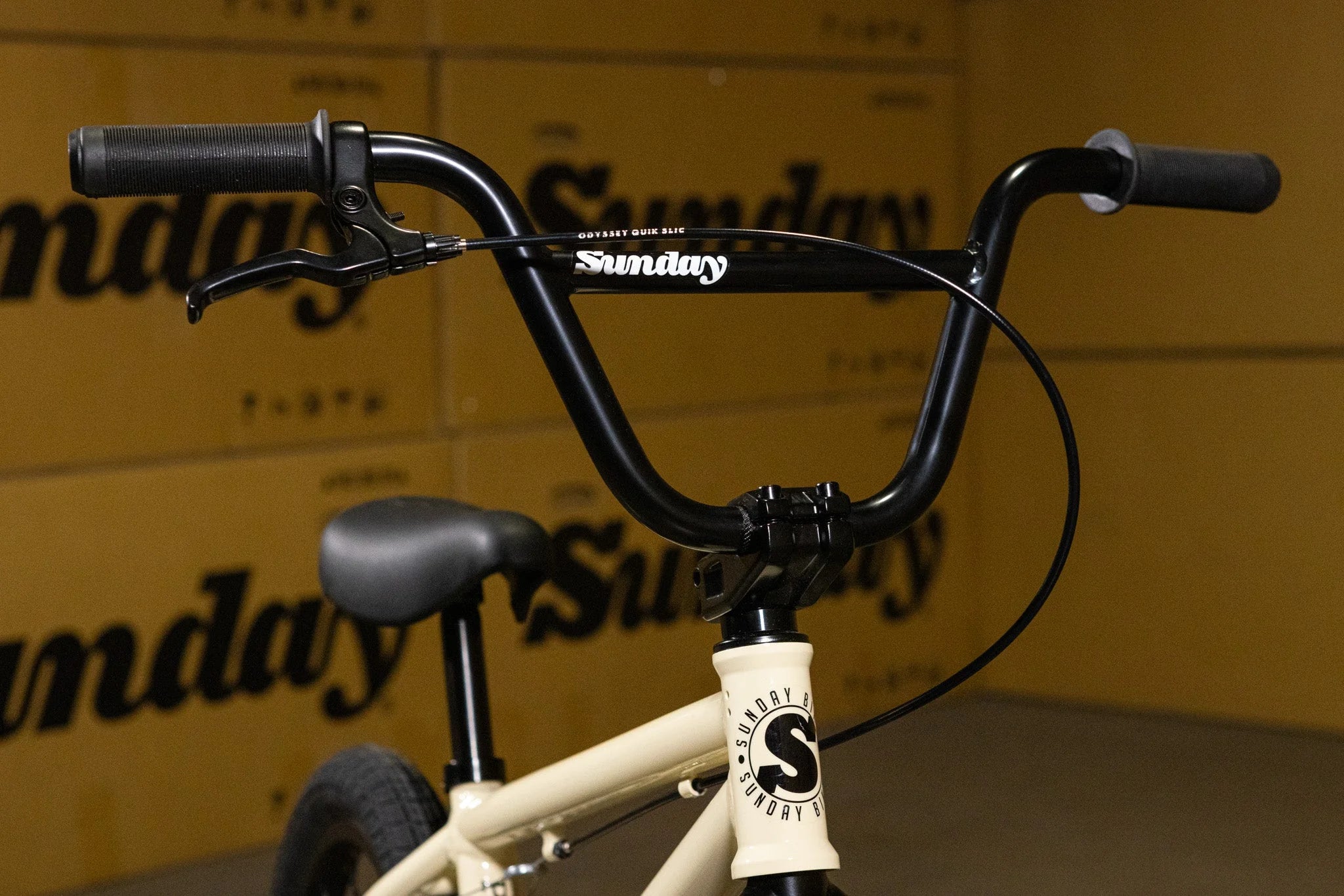

• Handlebar: Sunday, 2-piece

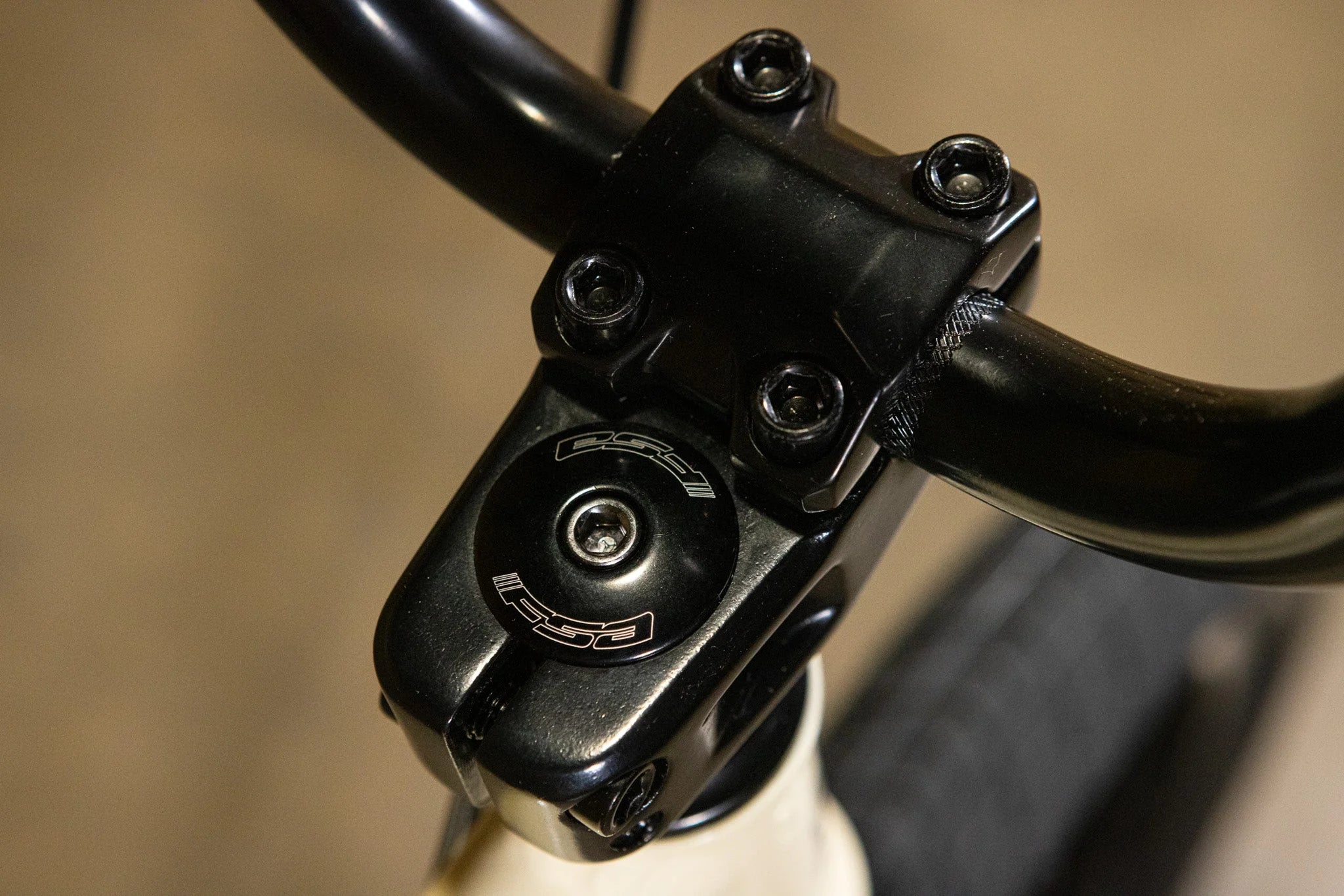

• Stem: Top load, aluminum, 40mm

• Headset: FSA integrated, 1-1/8"

• Alloy Cap: FSA aluminum cap

• Brake Lever: Junior Aluminum, U-brake compatible

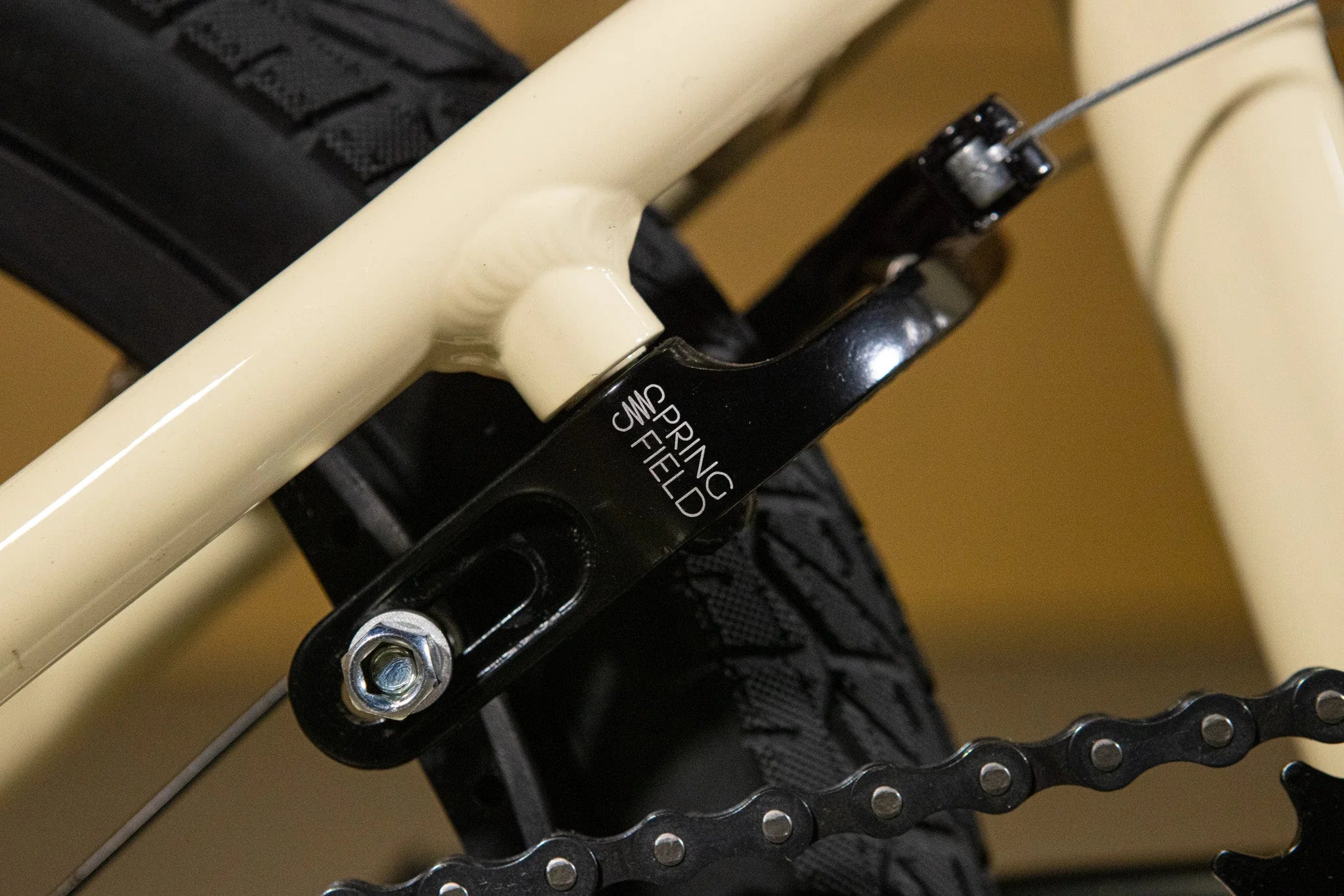

• Brakes: Odyssey Springfield U-brake

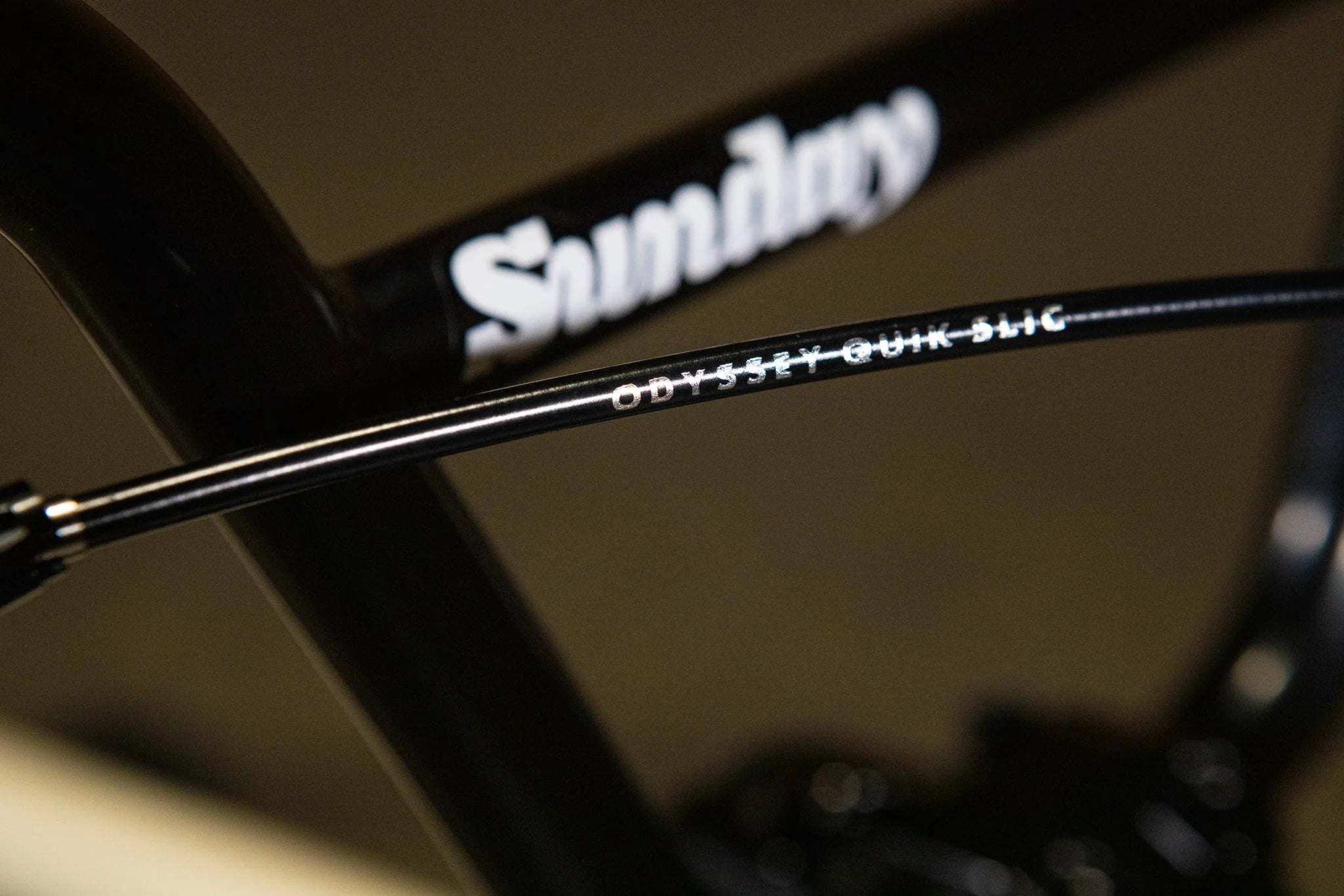

• Brake Cable:  Odyssey Quik Slic

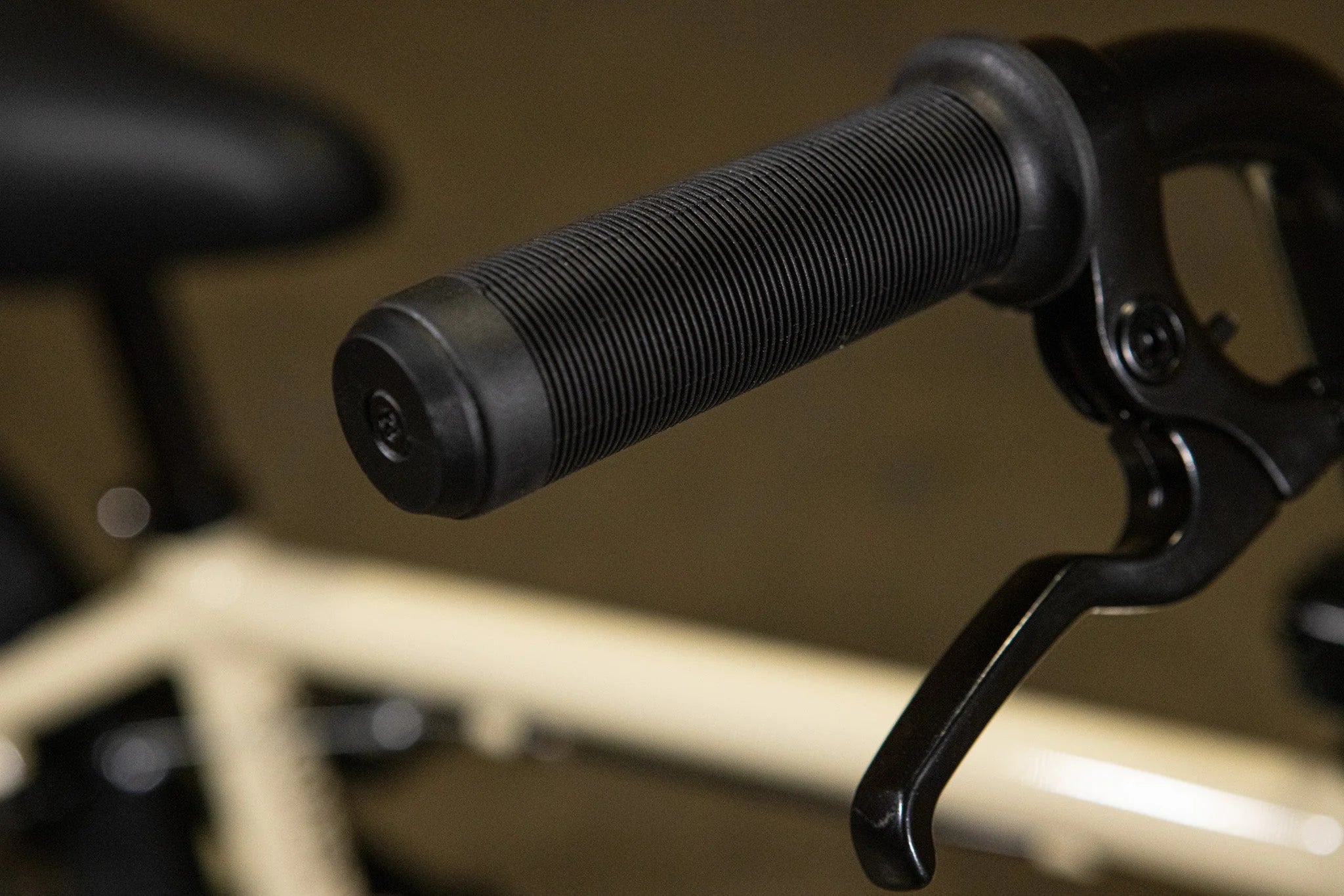

• Grips: Velo Junior

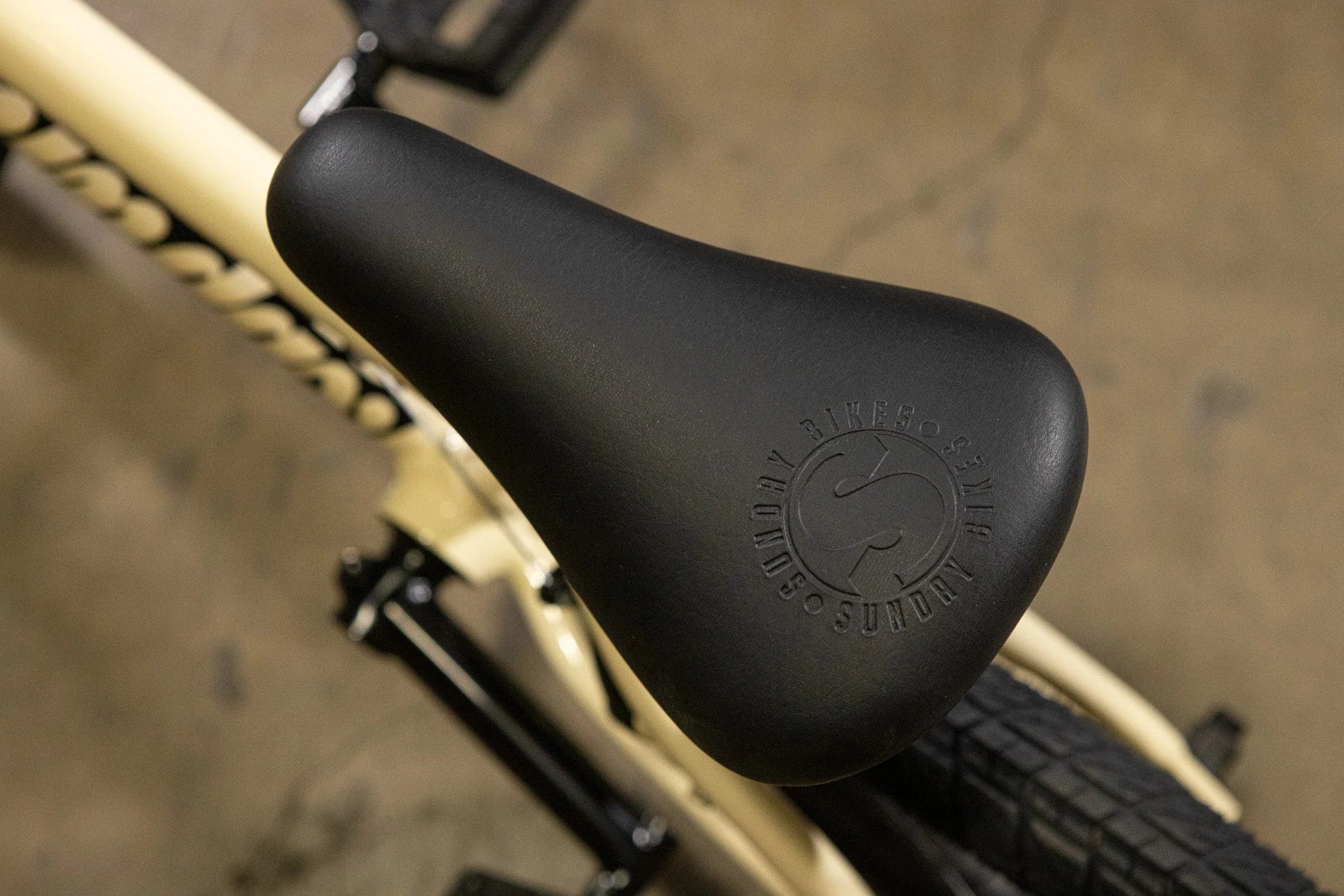

• Seat: Sunday Badge, seat and post combo

• Seat post: Integrated

• Seat Clamp: Sunday

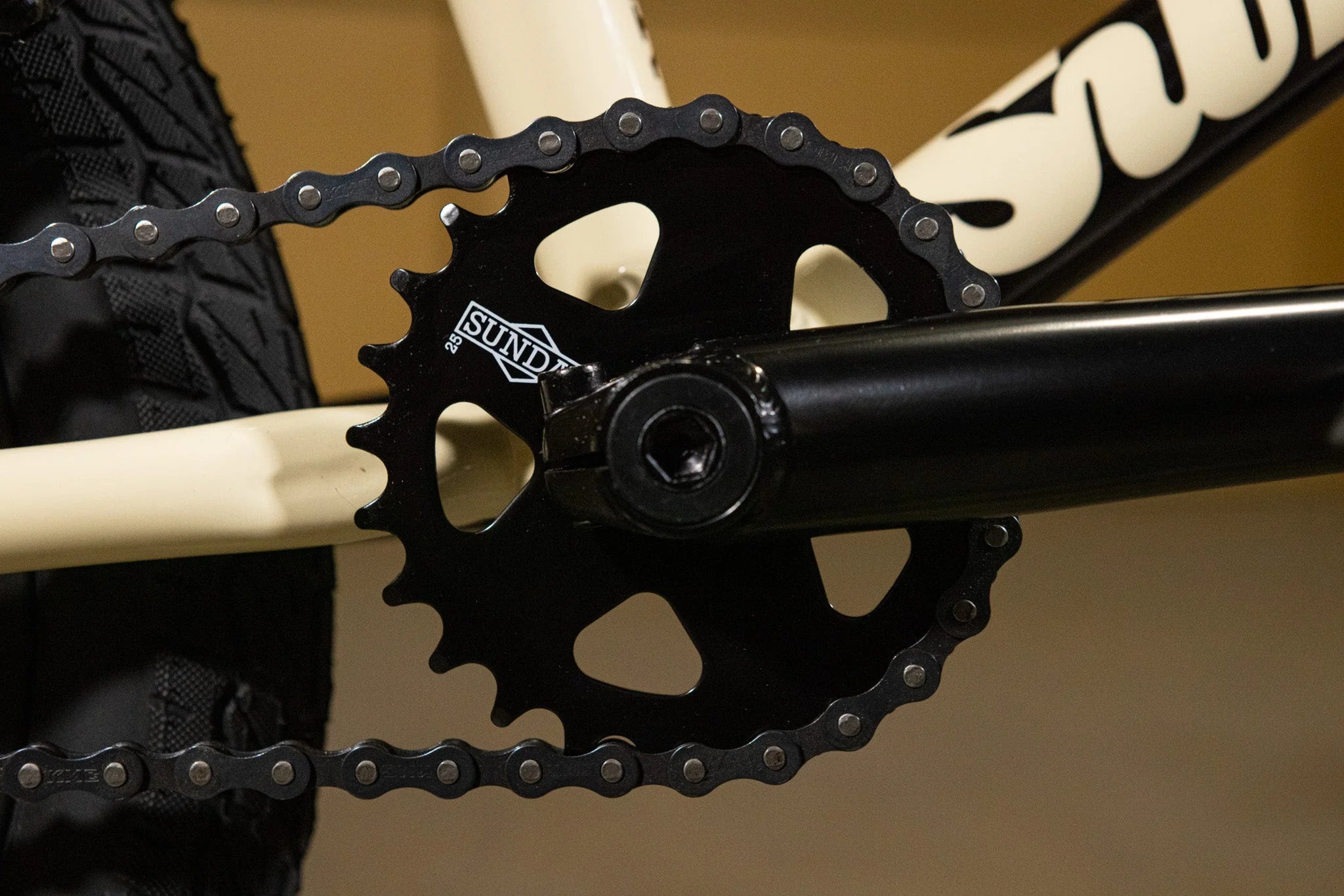

• Sprocket: Sunday Sabertooth v2, 25T, steel

• Cranks: 127mm, 3-piece, chromoly

• BB Parts: Sealed, Mid, 19mm

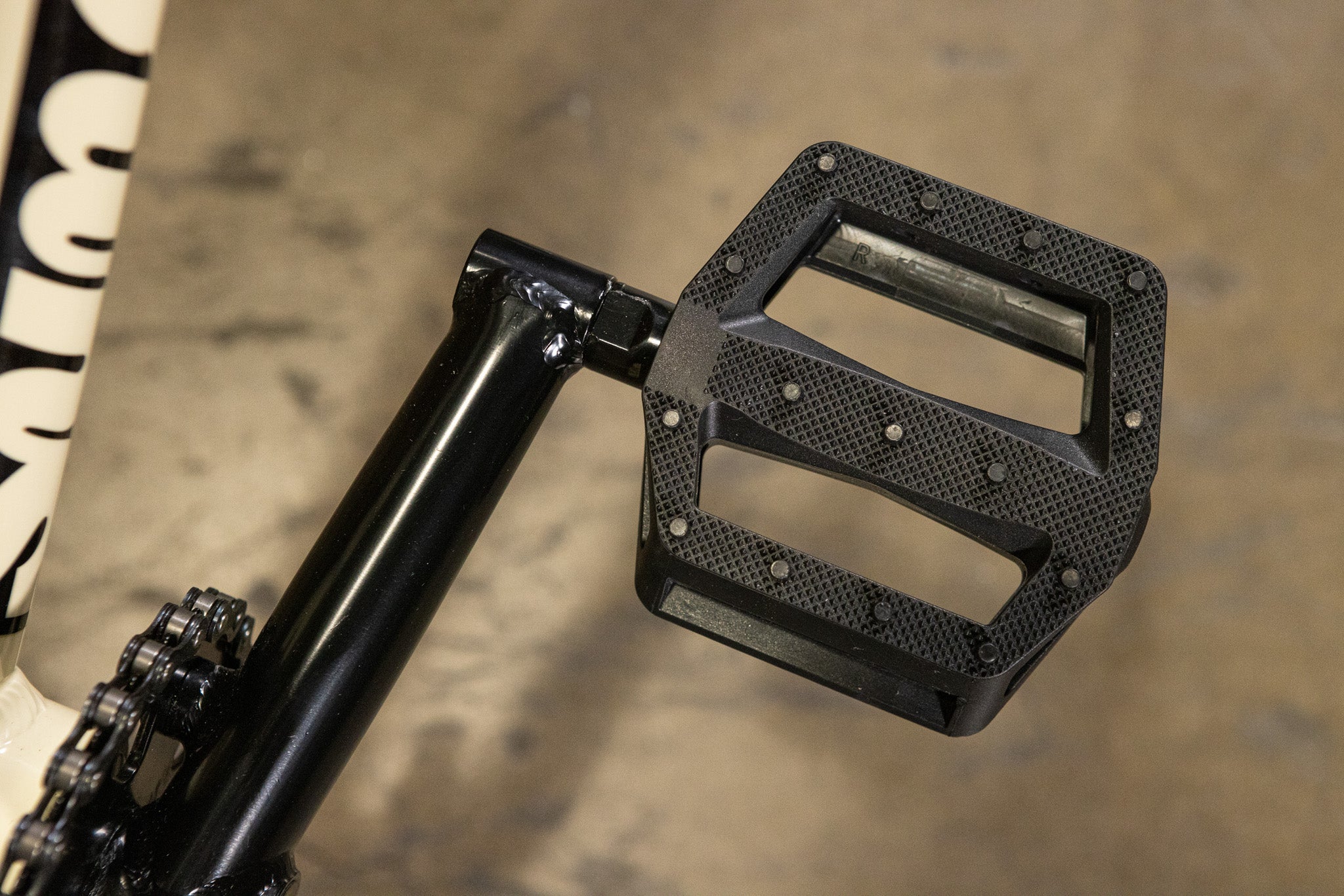

• Pedals: FPD platform, plastic

• Rims: P-7X aluminum, 16", 20H

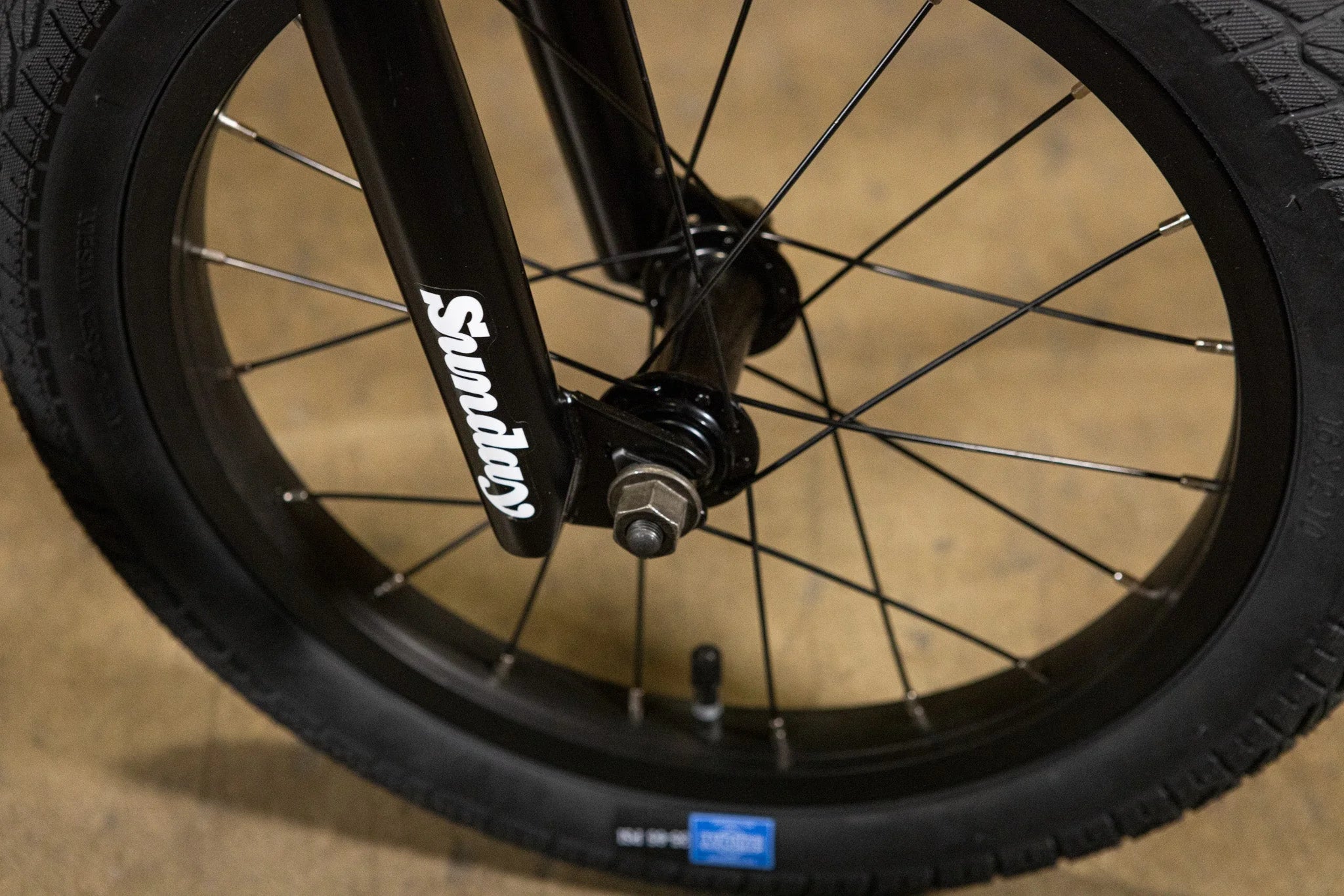

• Front Hub: Sunday, 20H, low-flange, loose-ball, 3/8" axle

• Rear Hub: Sunday, 20H, sealed, 14mm axle w/ 10T Driver

• Spokes: 14g steel, black

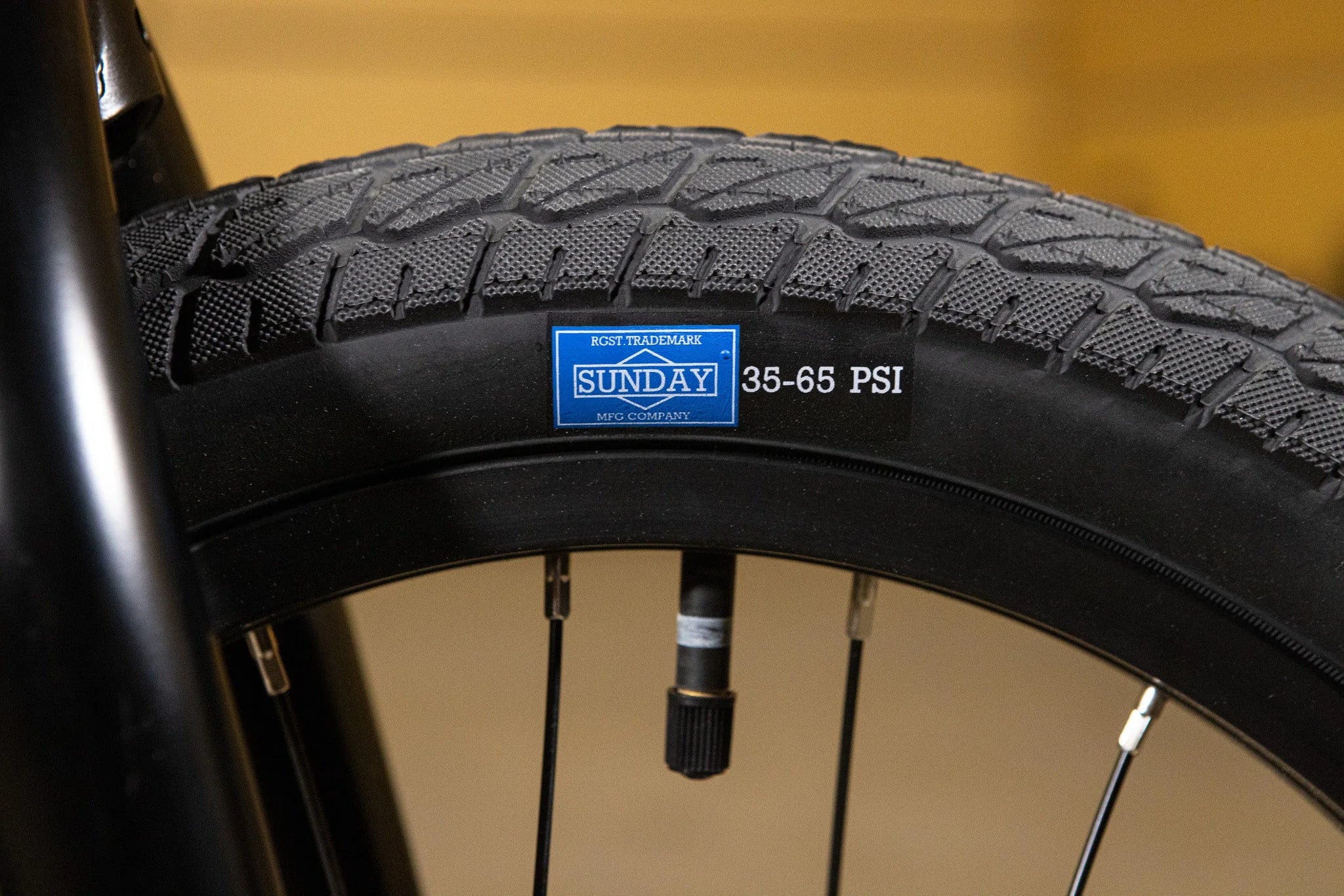

• Tires: Sunday OEM, 16 x 2.20" (F & R)

• Chain: KMC S1

• Approx. Weight: 23.3lbs (with brakes)

Frame Geometry

• Top Tube Length: 16.5"

• Head Tube Angle: 74.5°

• Seat Tube Angle: 71°

• Chainstay Length: 10.6"-10.85”

• Bottom Bracket Height: 9.25"

• Standover: 6.9"

Handlebar Geometry

• Rise: 6.75"

• Width: 23"

• Backsweep: 12°

• Upsweep: 1°
