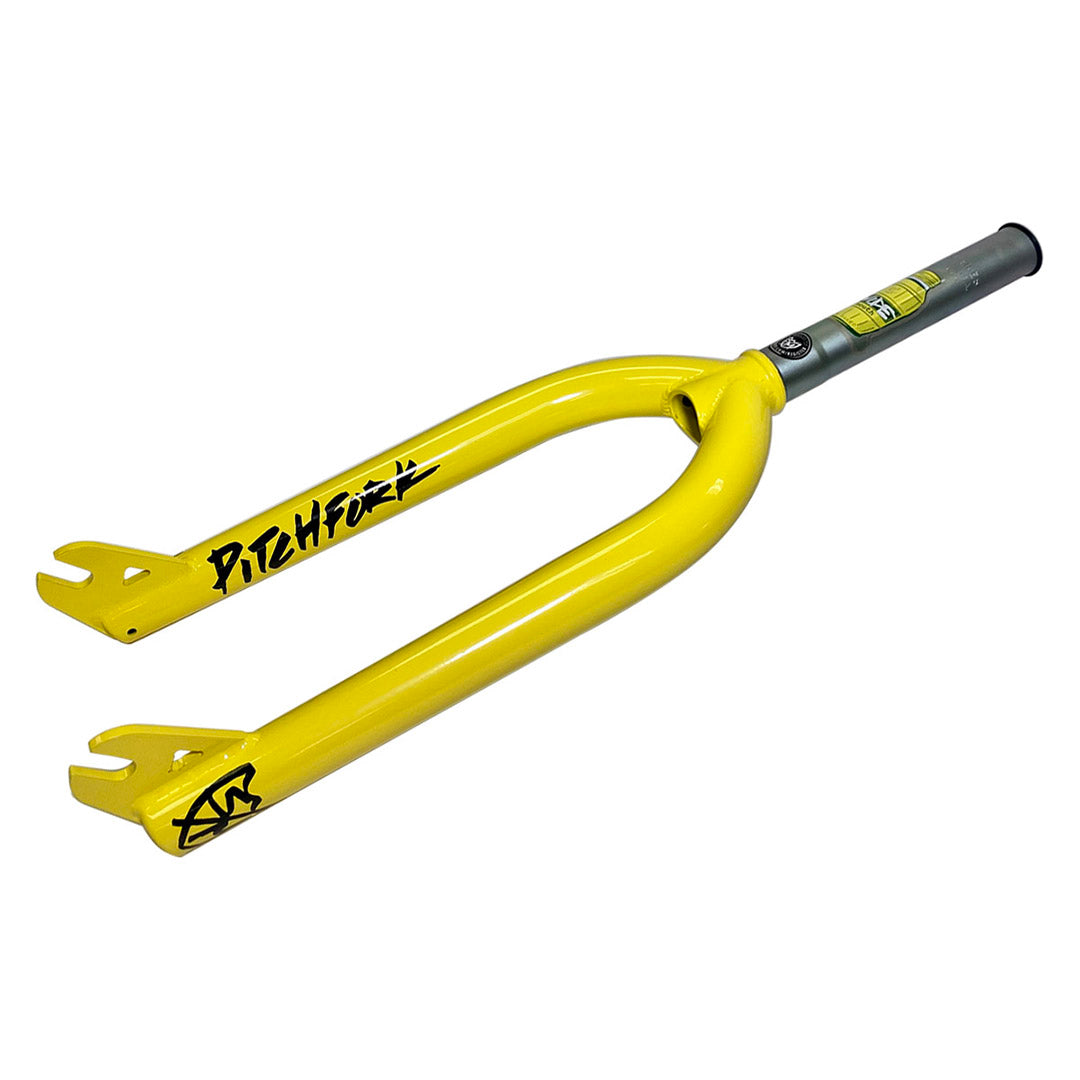

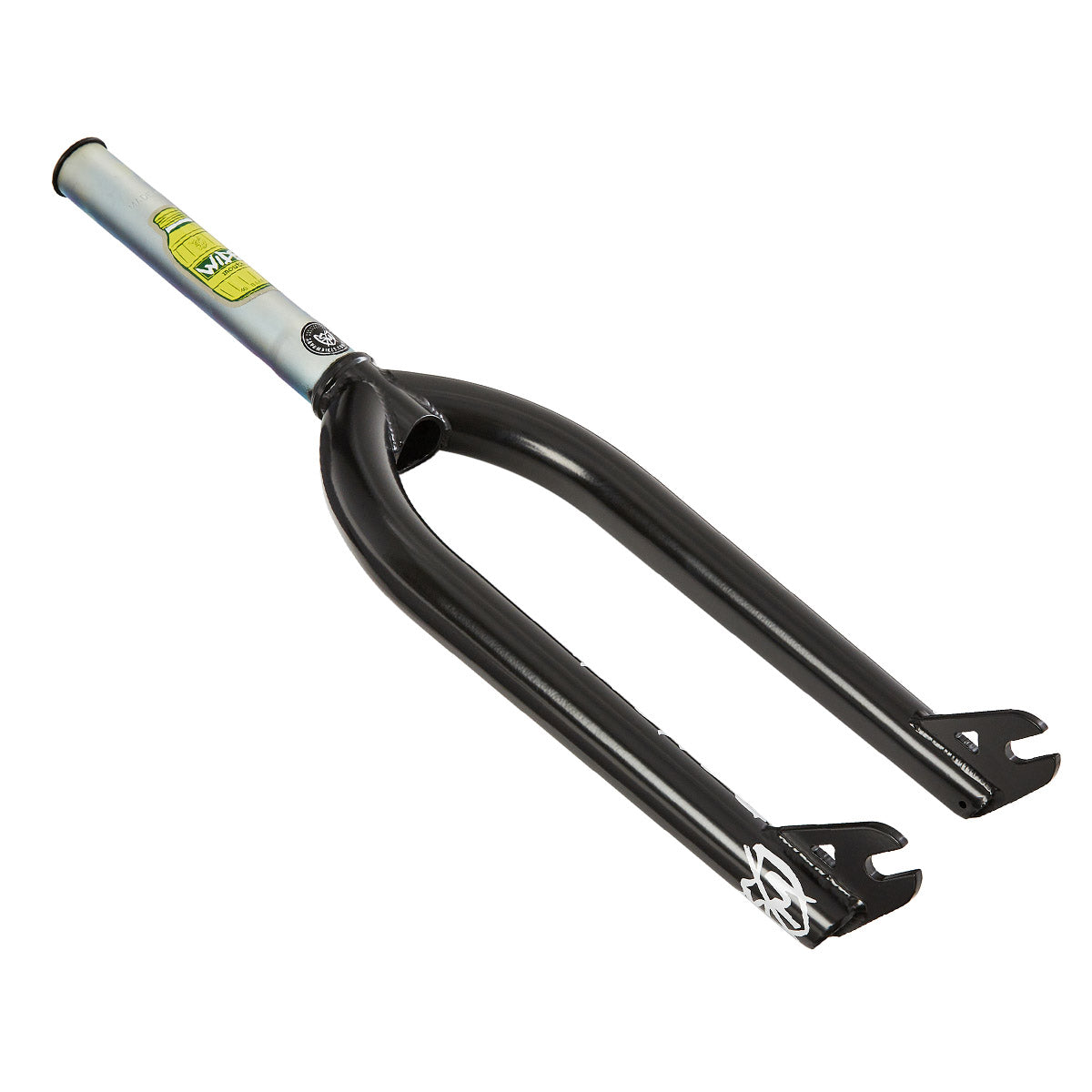

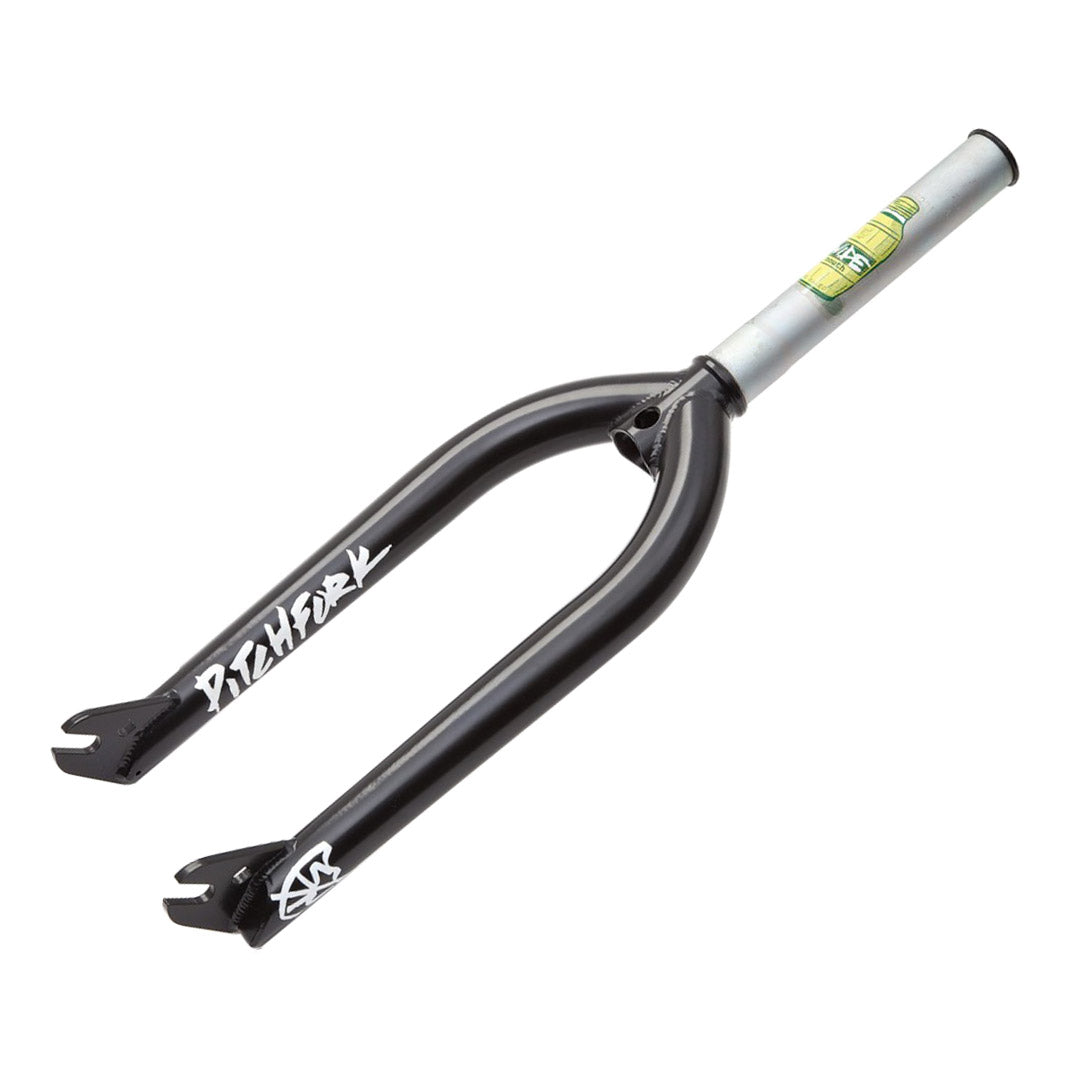

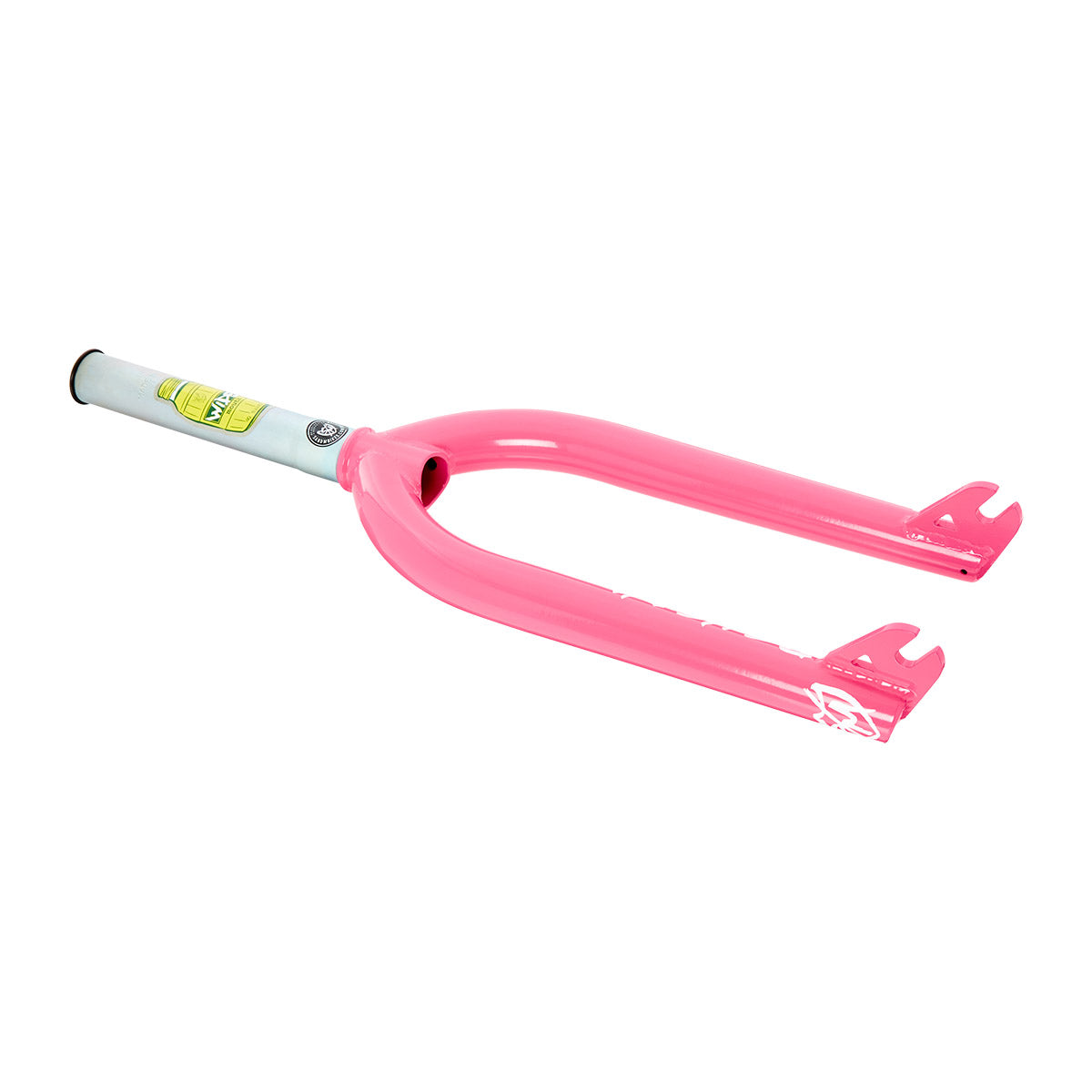

S&M Pitchfork Widemouth BMX Fork

S&M Pitchfork Widemouth BMX Fork

"The tried and true S&M Widemouth fork offers plenty of tire clearance in a steeper 26mm offset for a more responsive front end.  Less fork offset creates a shorter overall wheelbase for more responsive handling of your entire bike. Nose wheelies, pivots and a balance point that’s easier to reach. Believe and achieve. For 20 or 22″ wheel sizes.".

SPECS

• LEGS: Double Butted, Tapered, 4130 CrMo

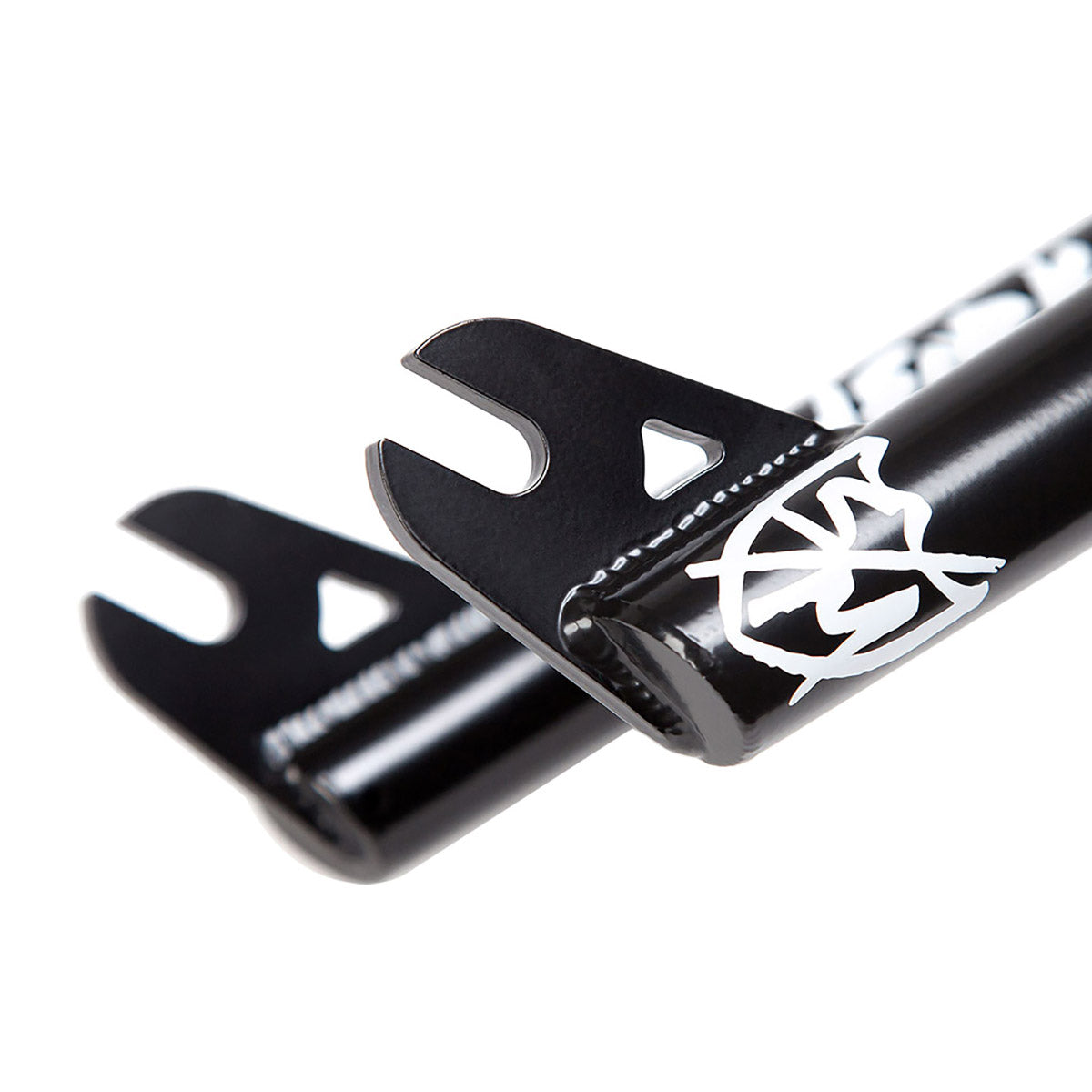

• DROPOUTS: Laser Cut 3/8″ Slot

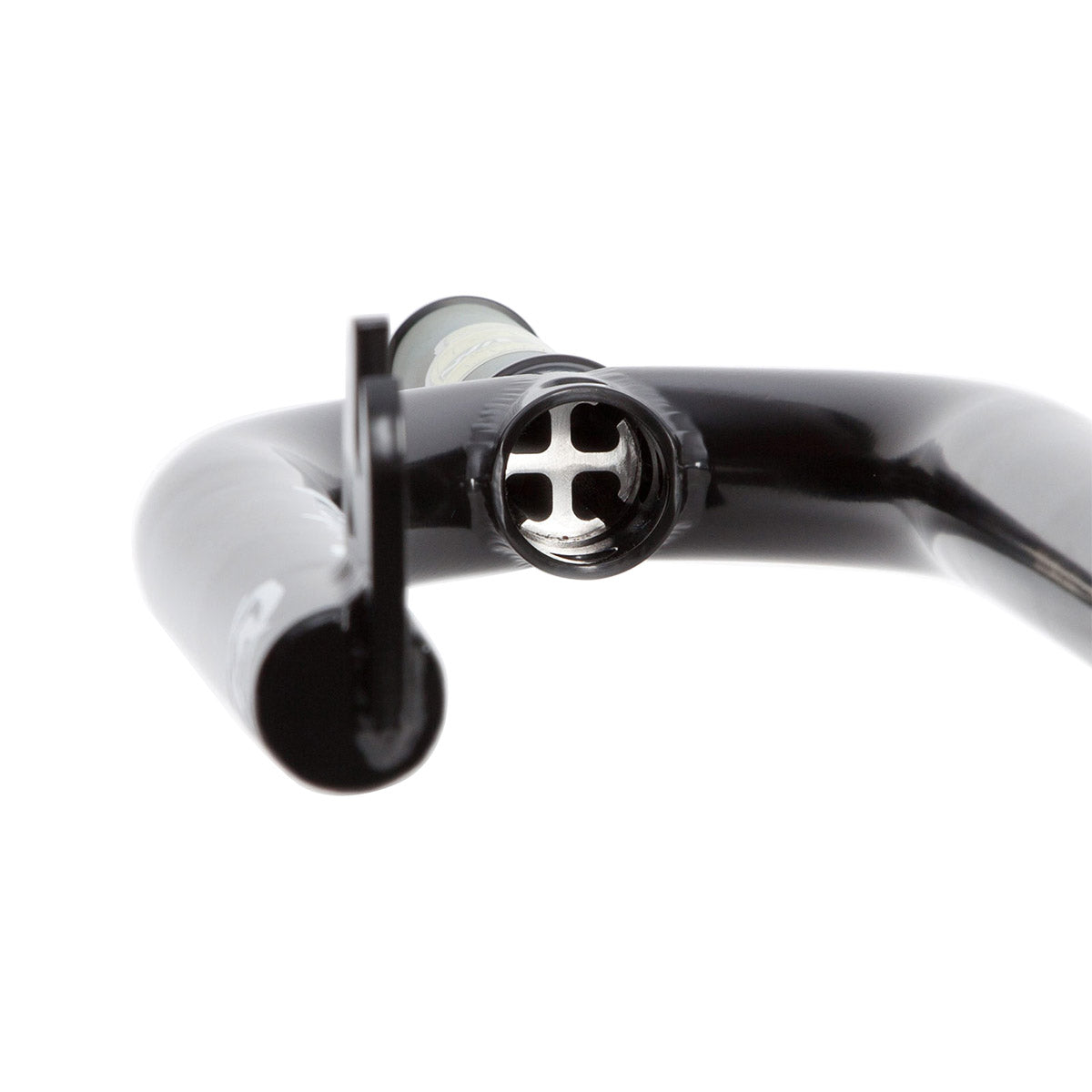

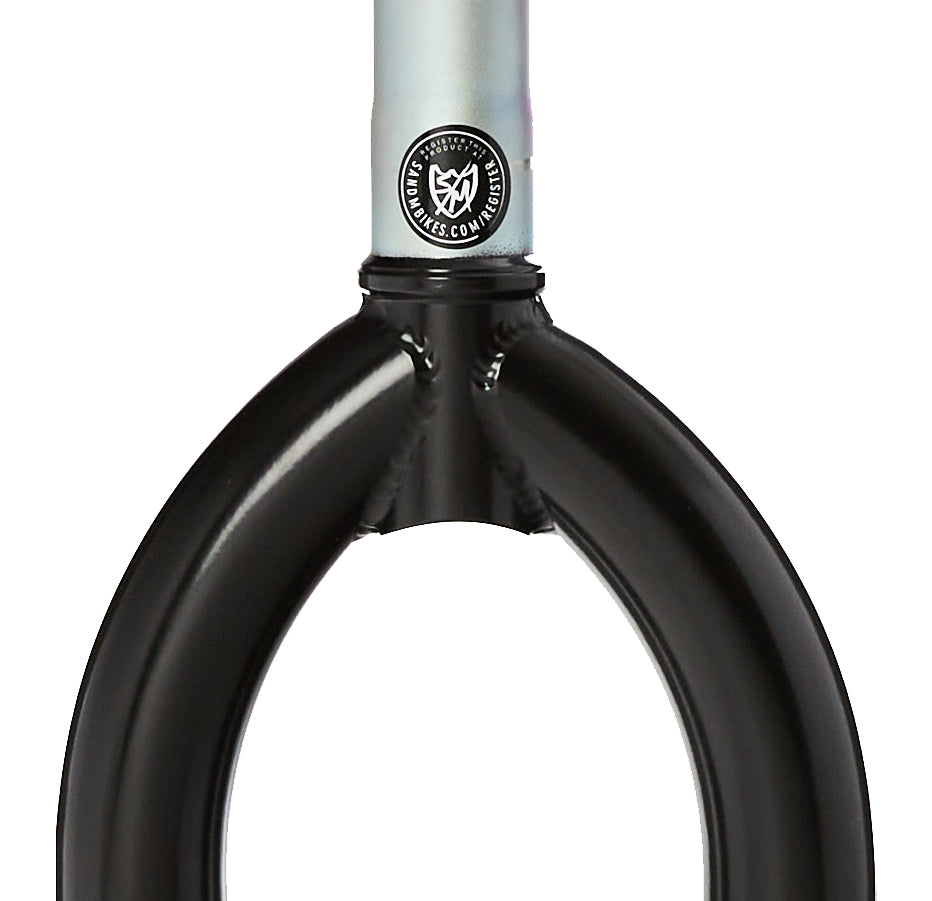

• STEERER TUBE: Integrated Bearing Race. 1 Piece CNC-Machined 4130 CrMo,
• Extruded 6061 Steerer Tube Insert

• STEERER TUBE LENGTH: 173mm

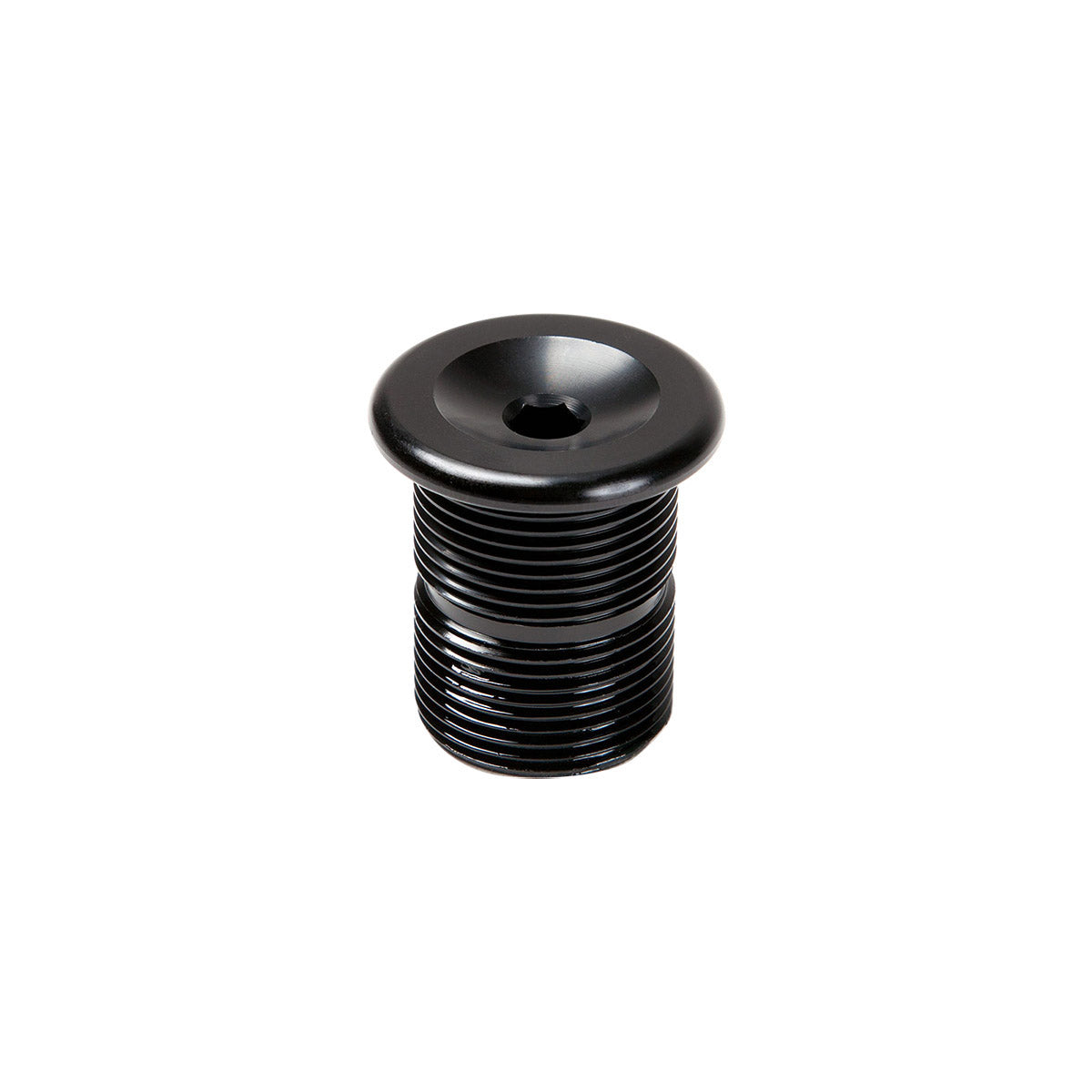

• COMPRESSION: M24 X 1.5 Thread – 6mm Allen Slot

• AXLE TO CROWN HEIGHT: 20″ – 320mm

• OFFSET 26mm & 33mm

• WEIGHT: 1.99 lb (.90 kg) 20″

• HEAT TREAT: 4Q Baked Post-Weld

• TIRE CLEARANCE: MAX CLEARANCE 2.45″
