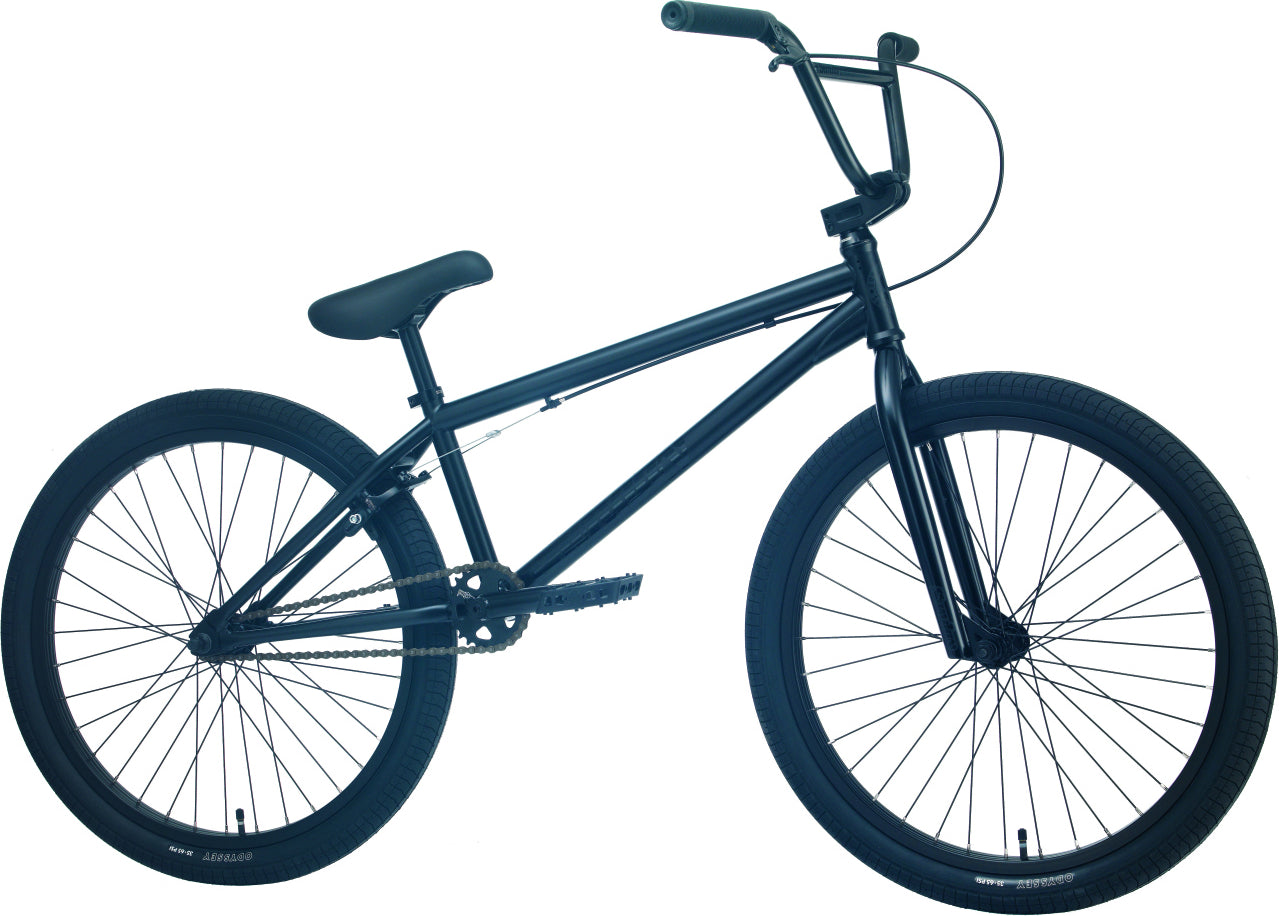

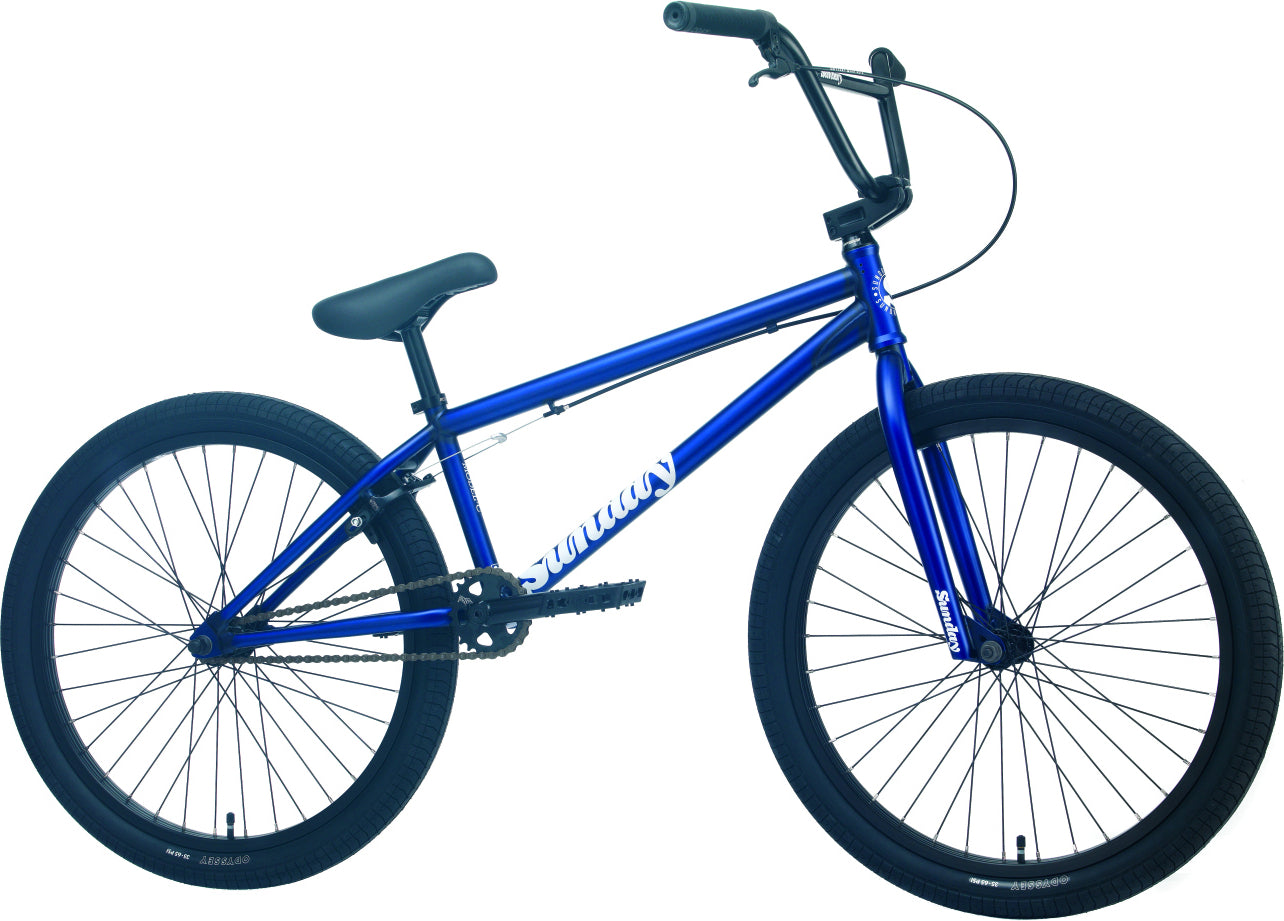

Sunday Model C 24" BMX Bike

Sunday Model C 24" BMX Bike

Words from Sunday:

"The Model C created the modern standard in 24” BMX.

With its proven 20” inspired geometry, this bike can be ridden with a greater sense of control at full speed. Bigger riders will notice its advantages right away. Comes with an awesome Odyssey/Sunday parts package at an affordable price.

When it comes to 24”, the Model C changed the game.".

Key Features

• 24" Pro-Style Geometry

• Odyssey Broc Raiford Grips

• Odyssey Springfield Brakes

• Odyssey Twisted PC Pro Pedals

• Odyssey Monogram Seat

• FSA Conical Headset

• Sunday Lightning Rims

• Odyssey Pursuit OEM Tires

• Sealed Front & Rear Hubs

• Specifications

• Frame: Sunday Model-C, 24" frame, Hi-Ten Steel w/ Integrated HT, Cr-Mo DT/CS

• Fork: Sunday Model-C, 24" fork w/ 2-piece chromoly steerer tube and welded pre-load

• Handlebar: Sunday 24umph XL OEM, 2-piece

• Stem: Sunday Freeze top load, 48mm

• Headset:  FSA integrated conical, 1-1/8"

• Alloy Cap: Sunday M16, aluminum

• Brake Lever: Odyssey Springfield

• Brakes: Odyssey Springfield U-brake

• Brake Cable:  Odyssey Quik Slic

• Grips: Odyssey Broc Raiford

• Seat: Odyssey Monogram, Pivotal

• Seat post:  Sunday Pivotal

• Seat Clamp: Sunday

• Sprocket: Sunday Sabertooth v2, 25T, steel

• Cranks: 175mm, 3-piece, chromoly

• BB Parts: Sealed, Mid, 19mm

• Pedals: Odyssey Twisted PC Pro

• Rims: Sunday Lightning, 24", 36H

• Front Hub: Sunday, 36H, low-flange, sealed , 3/8" axle

• Rear Hub: Sunday 36H, sealed, 14mm axle w/ 10T Driver

• Spokes: 14g steel, black

• Tires: Odyssey Pursuit OEM, 24 x 2.2" (F & R)

• Chain: KMC Z1 wide
• Weight : With Brakes: 29.1lbs

Frame Geometry

• Top Tube Length: 22"

• Head Tube Angle: 74.5°

• Seat Tube Angle: 71°

• Chainstay Length: 14.6-14.85”

• Bottom Bracket Height: 13.75"

• Standover: 9.25”

Handlebar Geometry

• Rise: 7.75"

• Width: 28"

• Backsweep: 12°

• Upsweep: 4°
